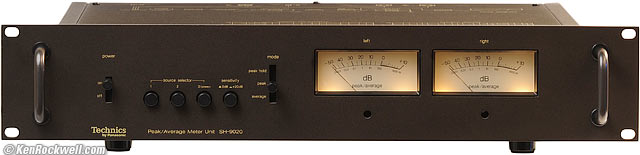

Technics SH-9020 (about $500 used). enlarge. I got this mine at this link directly to them at eBay (see How to Win at eBay).

This free website's biggest source of support is when you use those or any of these links to approved sources when you get anything, regardless of the country in which you live — but I receive nothing for my efforts if you take the chance of buying elsewhere. I get no government hand-outs and run no pledge drives to support my research, so please always use any of these links to approved sources for the best prices, service and selection whenever you get anything. Thanks for helping me help you! Ken.

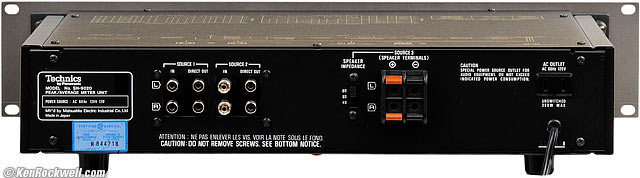

Technics SH-9020, rear

Rear, Technics SH-9020. enlarge.



Technics SH-9020 remote control

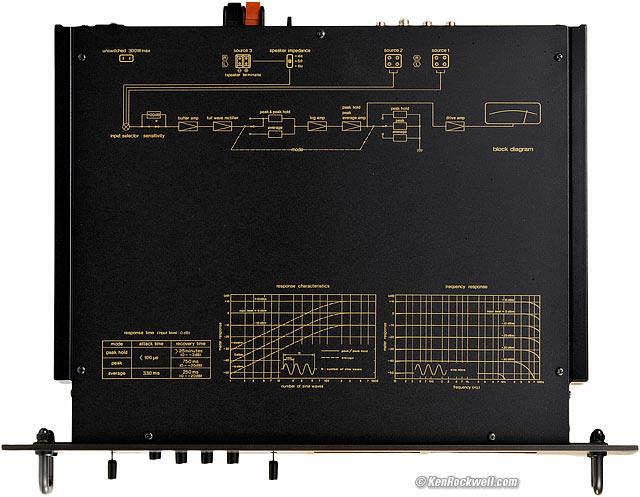

Top, Technics SH-9020. enlarge.



Technics SH-9020 remote control

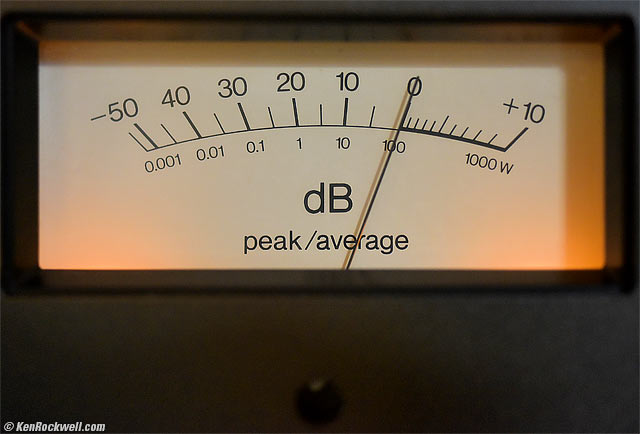

Meter face, Technics SH-9020. enlarge.



December 2014   Technics reviews    audio reviews    all reviews

Please help KenRockwell..com

Introduction         top

Adorama pays top dollar for your used gear.

Amazon

B&H Photo - Video - Pro Audio

Intro   Specifications   Measurements   Compared

Usage   Recommendations   More

The Technics SH-9020 seems like a goof, but it's actually a very accurate and precise wide-ranged meter that's very useful for measuring audio levels.

One thing it does is hold peaks forever. You can leave it running, and come back later and see the exact peak power used by your amplifier. It's so sensitive to even the shortest peak that I didn't realize I used so much power.

It's a masterpiece of analog design. It's accurate, fast and stable.

There's no overshoot; the needle moves up to the peak and stays there.

The Peak Hold setting works! You can set it, play the amp, and look or come back later and see what the peak power was. There's no auto reset for Peak Hold, it holds the peak and stays at that level for hours.



Circuit Design

It uses a full-wave rectifier.

It either has an instantaneous peak attack, or a 200 mS attack in average mode.

Decay is either roughly VU, or infinite.

The front panel selects either of two loop-through line-level RCA inputs, or the back-panel speaker level (power) inputs.

Watts are measured as voltage, then displayed as power into your choice of 8Ω, 6Ω or 4Ω.

The +20 dB range switch is on front, and the 8Ω, 6Ω or 4Ω selection switch is on the back.

The SH-9020 is calibrated in dBu (0 dBu = 774.6 mV) for line levels, but it's not marked that way. A standard CD player or DAC has a 2 V maximum output, and will read +8.2 dBu peak.

Peak and Aveerage levels are calibrated for the RMS value of a sine wave; in other words, a sine wave will read the same in either the Peak or Average settings.



Technics SH-9020 remote control

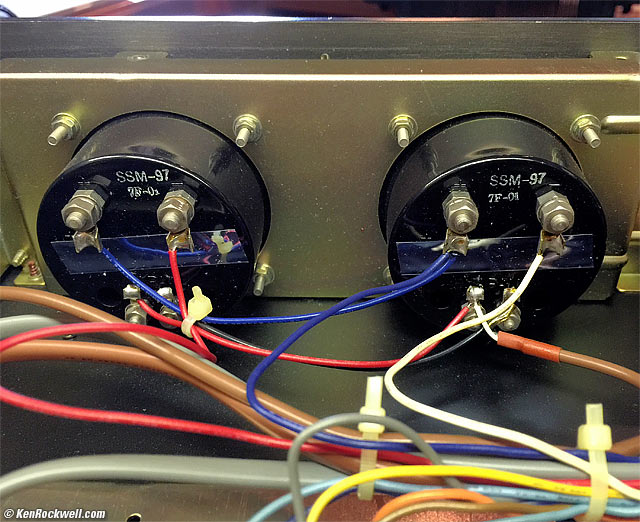

Serious meter movements inside the Technics SH-9020. enlarge.



Specifications         top

Intro   Specifications   Measurements   Compared

Usage   Recommendations   More



Line-Level Inputs (Inputs 1 and 2)

The SH-9020 is calibrated in dBu, but it never tells you that.

A dBu is dB relative to the voltage which produces 1 mW into 600Ω, or 774.6 mV.



0 dB (sensitivity switch out, rarely used)

0 dB is +20 dBu or 7.746 V.

Full range reads -30 dBu to +30 dBu (24.5 mV to 24.5 V).



+ 20 dB (sensitivity switch in, normal setting)

0 dB is 0 dBu or 774.6 mV.

Line levels read directly in dBu from -50 dBu to +10 dBu (2.45 mV to 2.45 V).

A standard CD player or DAC has a 2 V maximum output and will read +8.2 dBu peak.



Speaker (Power) Input (Input 3)

The meter reads voltage, displayed as watts.

A watt is either 2.828 V into 8Ω, 2.4495 V into 6Ω or 2.000 V into 4Ω.

The 5dB markings correspond to 3.16 intervals, in other words, 316 mW, 3.16 W or 31.6 W, etc.



0 dB (sensitivity switch out, normal position)

0 dB is 100 watts power (+20 dBW or 28.28 V into 8 Ω).

The lower wattage scale reads correctly.

Add 20 from the dB reading to get dBW.

The dB scale reads power from -30 dBW to +30 dBW (1 mW to 1 kW, or 89.44 mV to 89.44 V into 8 Ω).

The 1 dB markings at the top refer to 125 W, 160 W, 200 W, 250 W, 316 W, 400 W, 500 W, 630 W, 800 W and 1,000 W.



+ 20 dB (sensitivity switch in, used only at quiet levels)

0 dB is 1 watt (0 dBW or 2.828 V into 8Ω).

The dB scale reads directly from -50 dBW to +10 dBW (10 µW to 10 W or 8.9 mV to 8.944 V into 8 Ω).

The wattage scales must be divided by 100. What reads as 100 W is really 1 W, full-scale 1,000 W is really 100 W and the lowest -50 dB reading isn't 1 mW; it's only 100 µW.

The 1 dB markings at the top are 1.25 W, 1.6 W, 2 W, 2.5 W, 3.16 W, 4 W, 5 W, 6.3 W, 8 W or 10 W.



Power Input

120 VAC, 60 Hz.

Rated 12 W.

Actual power consumption is 7.6W (70 mA) at 120 VAC.



Quality

Made in Japan.



Packaging

Corrugated cardboard box.

Two polystyrene foam ends.



Size

19" rack mount, two RU (3.5") high.

Feet add a little height if use on a table.



Price, USA

2014: about $500 used.



Measurements         top

Intro   Specifications   Measurements   Compared

Usage   Recommendations   More



Accuracy

Frequency Response

Time Constants

Actual Power Consumption



These measurements were made with an exotic Rohde & Schwarz UPL laboratory generator.



Accuracy     measurements        top

I'll be darned, even at 30 years old every reading at every level is still accurate to within the width of the needle!



Frequency Response     measurements        top

It's flat to within a fraction of a decibel (the width of the needle) across the entire 20 ~ 20,000 Hz range.

It's flat +0, -1 dB from 8 ~ 65,000 Hz in Average mode.

In Peak and Peak Hold modes, there is a +1 dB peak at 50 kHz. This makes its response ±1 dB from 8 ~ 93,000 Hz.

At lower levels (like -30 dB and below), the ultrasonic response falls off. This is marked on the top cover. Response to 20 kHz isn't affected.



Average

-3 dB at 5 Hz.

-1 dB at 8 Hz.

Flat 20 ~ 40,000 Hz.

-1 dB at 65 kc.

-3 dB at 120 kc.

-5 dB at 160 kc.

-6 dB at 180 kc.

-10 dB at 250 kc.

-15 dB at 320 kc.

-20 dB at 360 kc.

-30 dB at 410 kc.



Peak and Peak Hold

-3 dB at 5 Hz.

-1 dB at 8 Hz.

Flat 20 ~ 14,000 Hz.

+0.2 dB at 20 kc.

+1 dB at 50 kc.

0 dB at 80 kc.

-1 dB at 93 kc.

-3 dB at 110 kc.

-5 dB at 130 kc.

-10 dB at 160 kc.

-20 dB at 260 kc.

-30 dB at 280 kc.

-40 dB at 295 kc.

-50 dB at 300 kc.



Time Constants     measurements        top



Peak

Peak and Peak Hold Attack

1 mS burst reads 100%

100 µS burst (one cycle at 10 kc) reads -0.5 dB.

50 µS burst (one cycle at 20 kc) reads -3 dB.



Peak Decay

-12.5 dB after 500 mS

-25 dB after 1 second.

-40 dB after 2 seconds.



Peak Hold Decay

About -3 dB per hour in my nice sample of SH-9020, about -1.5 dB per hour in my beater sample. In my beater sample, the left channel decayed 50% more than the right.

This means it won't decay at all in an hour, and will decay about 15 dB overnight.



Average

Average Attack

316 mS burst reads -0.5 dB.

100 mS burst reads -4.5 dB.

31.6 mS burst reads -10 dB.

10 mS burst reads -20 dB.

3 mS burst reads -30 dB.

1 mS burst reads -40 dB.



Average Decay

50 dB per second (50 dB in 1 second, 26 dB after 500 mS).



Measured Power Consumption     measurements        top

The SH-9020 runs cool.

It uses 7.8 W (70 mA) at 120 VAC regardless of what it reads.



Compared         top

Intro   Specifications   Measurements   Compared

Usage   Recommendations   More

The SH-9020 is far more accurate than other consumer meters. It's accurate and catches and holds any peak.

It also displays over a wider range.



Usage         top

Intro   Specifications   Measurements   Compared

Usage   Recommendations   More



Beware: the speaker grounds are grounded together. DO NOT USE THIS METER WITH BRIDGED SPEAKER OUTPUTS.

Likewise, do not reverse the polarity of the wires going to the meter. If you do, you'll short the speaker outputs to ground.

I use only AWG 24 wire to connect to my power amp. This way I hope the wire will fuse itself before I blow out something else if I do something stupid.

The Peak Hold resets either by moving the level to Peak or Average, or turning off the power.
