Aperlite YH-700 Flash
for Nikon and for Canon, only $90
© 2015 KenRockwell.com. All rights reserved.

Intro   Specs   Performance   Compared   Recommendations

Please help KenRockwell..com

Aperlite YH-700

Aperlite YH-700 (4-AA, ISO 100 measured guide number 80'/24m at 35mm, 2.2s measured recycling time; shown for Canon, also comes for Nikon, about $90.)

This ad-free website's biggest source of support is when you use this link to it at Amazon, or any of these links to approved sources when you get anything, regardless of the country in which you live. Camera boxes are not sealed, so never buy at retail or any source not on my personally approved list since you'll have no way of knowing if you're missing accessories, getting a defective, store demo, damaged, returned or used product. Buy only from the approved sources I use myself for the best prices, service, return policies and selection. Thanks for helping me help you! Ken.



Aperlite YH-700

Aperlite YH-700C for Canon.



Aperlite YH-700

Aperlite YH-700C for Canon. (reads in feet if you set that in your camera's flash menu)



June 2015     Nikon Reviews   Nikon Flash      Canon   Canon Flash    All Reviews



Introduction         top

Intro   Specs   Performance   Compared   Recommendations

Adorama pays top dollar for your used gear.

B&H Photo - Video - Pro Audio

I buy only from these approved sources. I can't vouch for ads below.

This Aperlite flash is a low-price, off-brand, full-sized and full-featured flash for Canon or Nikon. I have the Canon version, and presume all should be the same for Nikon.

For a fraction of the price of a real Nikon or Canon flash, it pretty much works the same. It has all the same crazy features like repeating flash and wireless control as the Nikon and Canon full-size flashes, for a fraction of the price.

All the features and camera-controlled menus work flawlessly with my Canon 5DS. It exposes well and has plenty of power for portraits in broad daylight, and it recycles ultra-fast.

I'm very impressed. Rarely do I try any off-brand items and find that they work great. Usually there's something that doesn't work properly or they feel like they are going to fall apart immediately, but this bargain flash just keeps pumping out the light and responding perfectly.

What you lose is that it probably won't last as long and doesn't feel as precisely made as Nikon or Canon's flashes (It does have a metal foot), and that while it's the same full size as the Nikon SB-910 or Canon 600 EX-RT, it only makes as much power as the mid-sized Nikon SB-700 or Canon 430EX II.

The difference in power doesn't really matter (it's only an invisible half-stop); what does matter is if it recycles immediately from a full-power dump, and it does. I measure only 2.2 seconds to recycle at full-power with Sanyo eneloop, and that's with fully or partially discharged cells. If you're shooting long and hard, the batteries will get very hot as they should; this flash can really suck the power out of my batteries just as well as Nikon and Canon's newest flashes.

One thing that wasn't as good as Nikon or Canon's flashes is that when firing multiple full-power manual bursts for in indoor shoot, it did get hot enough that it wouldn't always fire because it was trying to cool down. I've never had that happen with Nikon or Canon, while the Aperlite flash simply wouldn't always fire for every shot after a while. That's just as well, because otherwise it would start to melt something.

One other thing is that the battery box is not marked clearly. You'll need a flashlight to see the tiny black-on-black + and - marks, while Nikon and Canon mark this much more clearly with big white painted icons.

It has a pull-out 16mm wide panel and white catchlight card. The wide panel works great, but my white card keeps sliding back into the flash instead of staying up.



Specifications         top

Intro   Specs   Performance   Compared   Recommendations



Circuit Design

Insulated Gate Bipolar Transistor (IGBT)



Guide Number

190'/58m at ISO 100 at 105mm.



Flash Modes

Canon: E-TTL II, E-TTL, TTL., Manual and multiple repeating

Nikon: i-TTL, TTL, Manual and multiple repeating



Wireless Modes

Wireless Modes: Wireless TTL, S1, S2

Wireless Slave Groups: 3 groups (A, B and C)

Wireless Channel: 4



Coverage

24-105mm zoom.

16mm with wide panel.

Vertical pitch: -7º ~ +90°

Horizontal yaw: 0º ~ 270°



Power

4 AA batteries



Battery Life

110-1,500 flashes



Recycle Time

Up to 3 seconds



Color Temperature

5800K



Flash Duration

1/200 ~ 1/20,000 second.



Manual Power Adjustment

Full to 1/128 in third-stops.



Included

Flash

Bag

Stand with metal ¼-20" tripod insert.

Manual



Size

3.07 x 5.75 x 4.67 inches.

78.0 x 146.0 x 118.5 mm.



Weight

13.8 oz. (390 g).

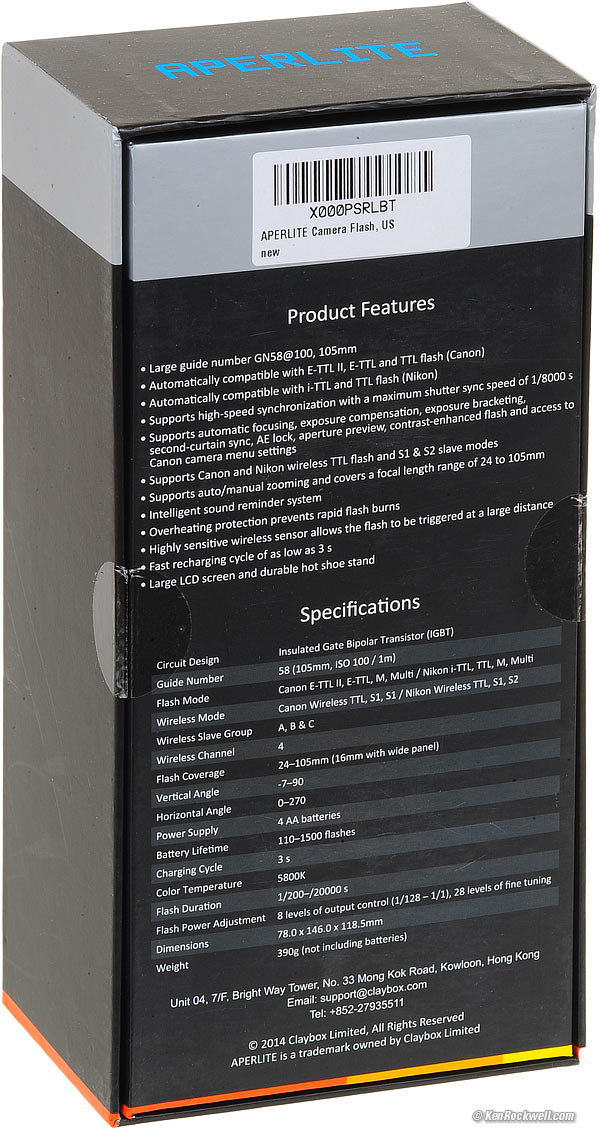

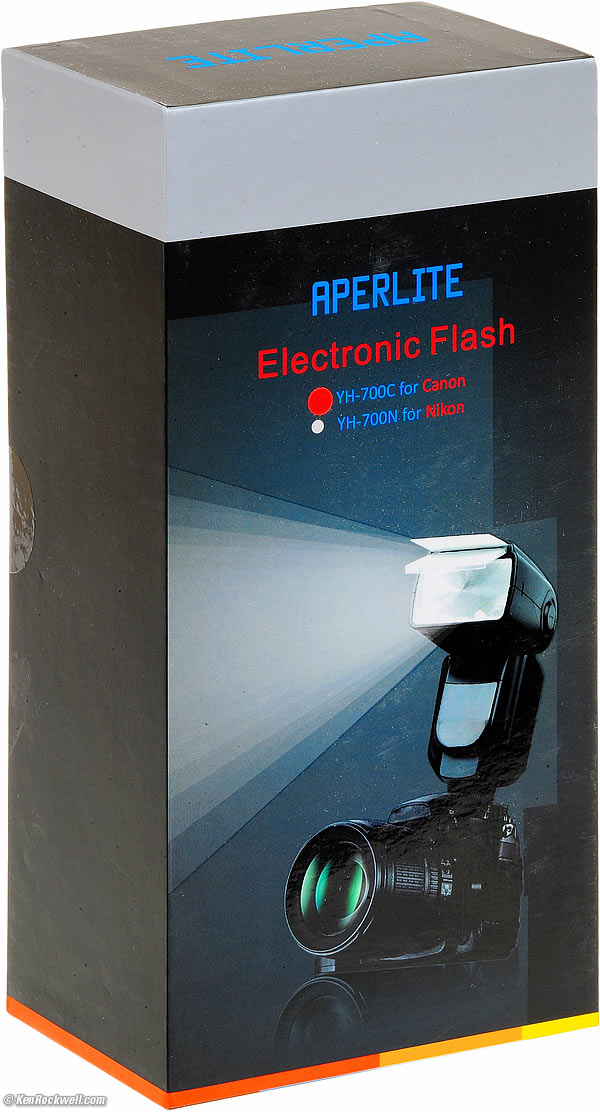

Aperlite TH-700 box Aperlite TH-700 box



Performance         top

Intro   Specs   Performance   Compared   Recommendations

Canon 5DS sample image

Stately Home, 18 June 2015. Canon 5DS, Canon 24-70mm f/2.8 L II at 25mm at f/8 at 1 second at ISO 100 with Aperlite YH-700C flash at full power, shot as normal JPG and processed in Perfectly Clear V2. Full 50 MP resolution.



Ryan and Katie at the park with dad.

Ryan and Katie at the park with dad, 18 June 2015. (Canon 5DS, Aperlite YH-700C flash, Canon 50mm f/1.8 STM, f/20 at 1/200 at ISO 400, Perfectly Clear V2.) Perfect fill-flash in broad daylight from 20 feet away! bigger.



Ryan and Katie talking into the air conditoner fan

Ryan and Katie talking into the air conditoner fan, 18 June 2015. (Canon 5DS, Aperlite YH-700C flash, Canon 50mm f/1.8 STM, f/14 at 1/200 at ISO 400, Perfectly Clear V2.) Perfect fill-flash in mixed daylight and shadow. bigger.



Ryan contemplates his egg

Ryan contemplates his egg, 18 June 2015. (Canon 5DS, Aperlite YH-700C flash, Canon 50mm f/1.8 STM, f/20 at 1/200 at ISO 400, Perfectly Clear V2.) Perfect fill-flash to light Ryan's face that was in almost total shadow. bigger.



Ryan and Katie picnic at the park

Ryan and Katie picnic at the park, 18 June 2015. (Canon 5DS, Aperlite YH-700C flash, Canon 50mm f/1.8 STM, Canon 50mm f/1.8 STM, f/22 at 1/200 at ISO 400, Perfectly Clear V2.) Perfect fill-flash in broad daylight. bigger.



Measured Power Output

Zoom Setting
Guide Number
Guide Number
Wide Panel*
48 feet
15 meters
24mm
80 feet
24 meters
35mm
80 feet
24 meters
50mm
90 feet (80 +1/3)
27 meters
105mm
100 feet (110 -1/3)
30 meters

* When zoomed to 50mm with wide panel. It has 1/6 stop more forward power when zoomed to 105mm, and 1/6 stop less when zoomed to 24mm with the wide panel.

I had no problem when firing it repeatedly at full power for these tests, but it did start misfiring presumably due to thermal limiting after I had been shooting it a lot at manual full-power while running some tests shooting an interior. It didn't tell me that this was why it was misfiring; it simply wouldn't fire as often as I'd like it to until it cooled.



Measured Recycling Time

2.2 seconds at full-power with Sanyo eneloop.

I measured the same with freshly charged cells or hot, worn, partially discharged cells, bravo!



AF Illuminator

It has a red AF illuminator that throws a pattern of red Xs across your subject. This allows you to focus even on a blank wall, but I found that since the flash is above my lens that often the illuminator was too high on my subject to align with my camera's AF sensors.



Ergonomics

Everything works as it should. It's easy to figure out; much easier than Nikon and Canon's top flashes.

The power switch slides on and off as it should, there are no screwy buttons to hold down or levers with locks.

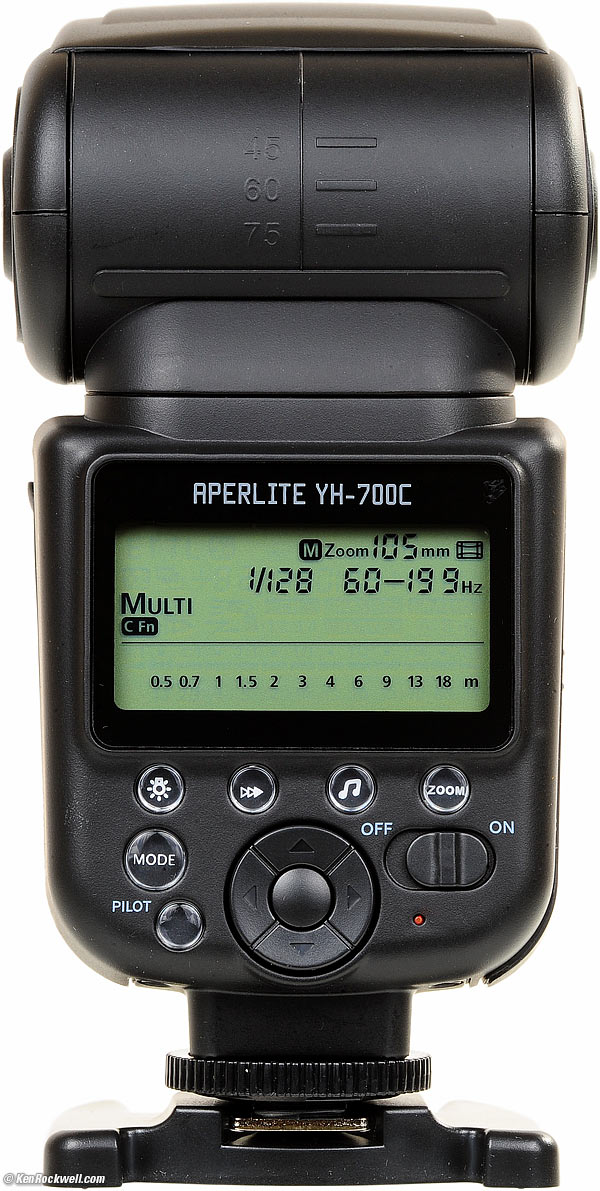

The LCD is a custom LCD, not a dot matrix, so it's easy to read. It is also well lit at night with green LED backlight. It's cleaner and easier to read than the dot-matrix screens of the Nikon SB-910 or Canon 600 EX-RT, and about the same as the dedicated screens of the Nikon SB-700 or Canon 430EX II.

The LCD is well lit, but the buttons are not lit at all.

The ready light is tiny. Oddly red means GO and green means charging.

When manually setting the zoom, it goes directly between 24mm and 105mm at either end. Just press ZOOM and click left or right, and you can run off either end.

The foot lock is simply a primitive screw lock, but it works easily and simply. It isn't as secure as the locking lock levers of Nikon and Canon, but it's easier and faster to use.

It's full-size, so it gets long when straightened out to put in a bag and may not fit some bags since it's longer than some telephoto lenses.

The swing and tilts have no locks, even though the styling imply it. I prefer this; locking flash tilts drive me crazy.



Data

Everything talks 2-way between my Canon 5DS. The two are so smart that the 5DS won't mark a file as shot with flash if the flash misfires for some reason, for instance if the over-temperature sensor prevents it from firing even though the flash looks ready to go.

The only thing I could fool was that when I set my 5DS to tell the flash to take camera cropping into account for the flash zoom setting, that the flash didn't know when I used the 5DS' new variable crop feature. I don't know that any Canon flash could read that, either.

It goes to sleep by itself, and wakes right up when I tap my camera's shutter.



Crazy features

The repeating and manual flash are easy to set and work great.

I didn't try wireless or any of the crazier menus.



Compared         top

Intro   Specs   Performance   Compared   Recommendations

It's a little more crude-feeling than Canon and Nikon's flashes, but considering that it sells for only about a third of the price, it's a bargain.

It has the same power as the mid-sized Nikon SB-700, Canon 430EX II or Canon 320EX, but has the larger size and weight of the full-size Nikon SB-910 or Canon 600 EX-RT.

It recycles just as super-fast as Nikon and Canon's state of the art.

If you don't miss a half-stop of maximum power, it has the same features as the top full-size flashes, and is easier to use and has an easier-to-read LCD.



Recommendations         top

Intro   Specs   Performance   Compared   Recommendations

I do this for a living, so the price of a flash is much less important to me than its quality, ultimate reliability over the years or size or weight. One missed shot 7 years from now could easily cost me more than I save with this flash.

I prefer the real Canon or Nikon flashes simply because small size and weight are also important to me. This flash has the same high performance as Nikon and Canon's mid-sized flashes, but has the size of their full-sized flashes.

That's just me. If you worry about price more than light weight, this flash is a screaming bargain! People at Amazon love it, too. See also Is it Worth It.

If you want a powerful, fast and competent flash for a low price, this is one of the few times I do recommend a non-camera-brand flash. This flash works great and I've never gotten more accurate exposure with any other flash.

If you find my work here helpful, my biggest source of support for this free website is when you use this link to it at Amazon to get yours, or any of these links to approved sources when you get anything, regardless of the country in which you live, it helps me keep adding to this free website — but I receive nothing for these efforts if you take the chance of buying elsewhere.



Help me help you         top

I support my growing family through this website, as crazy as it might seem.

The biggest help is when you use any of these links to approved sources when you get anything, regardless of the country in which you live. It costs you nothing, and is this site's, and thus my family's, biggest source of support. These places have the best prices and service, which is why I've used them since before this website existed. I recommend them all personally.

If you find this page as helpful as a book you might have had to buy or a workshop you may have had to take, feel free to help me continue helping everyone.

If you've gotten your gear through one of my links or helped otherwise, you're family. It's great people like you who allow me to keep adding to this site full-time. Thanks!

If you haven't helped yet, please do, and consider helping me with a gift of $5.00.

As this page is copyrighted and formally registered, it is unlawful to make copies, especially in the form of printouts for personal use. If you wish to make a printout for personal use, you are granted one-time permission only if you PayPal me $5.00 per printout or part thereof. Thank you!



Thanks for reading!





Mr. & Mrs. Ken Rockwell, Ryan and Katie.
