Jackery SolarSaga 100W Panel ($269.99). bigger. I got mine from Amazon. I'd also get it at B&H, or at eBay if you know How to Win at eBay.
The Solar Generator set includes this SolarSaga 100W solar panel and Explorer 300 Power Station which I use together. This panel can charge just about anything, other power banks or power stations of other brands.
This all-content, junk-free website's biggest source of support is when you use those or any of these links to approved sources when you get anything, regardless of the country in which you live. Thanks for helping me help you! Ken.
February 2022 Better Pictures Jackery Canon Nikon Sony Fuji All Reviews
Introduction top
Introduction New Good Bad Missing
Specs Performance User's Guide More
|
This is a powerful, sturdy, easy to carry and setup solar panel. It charges my Jackery Explorer 300 Power Station or Anker PowerHouse 300 II in a couple of hours, even if it's not entirely sunny.

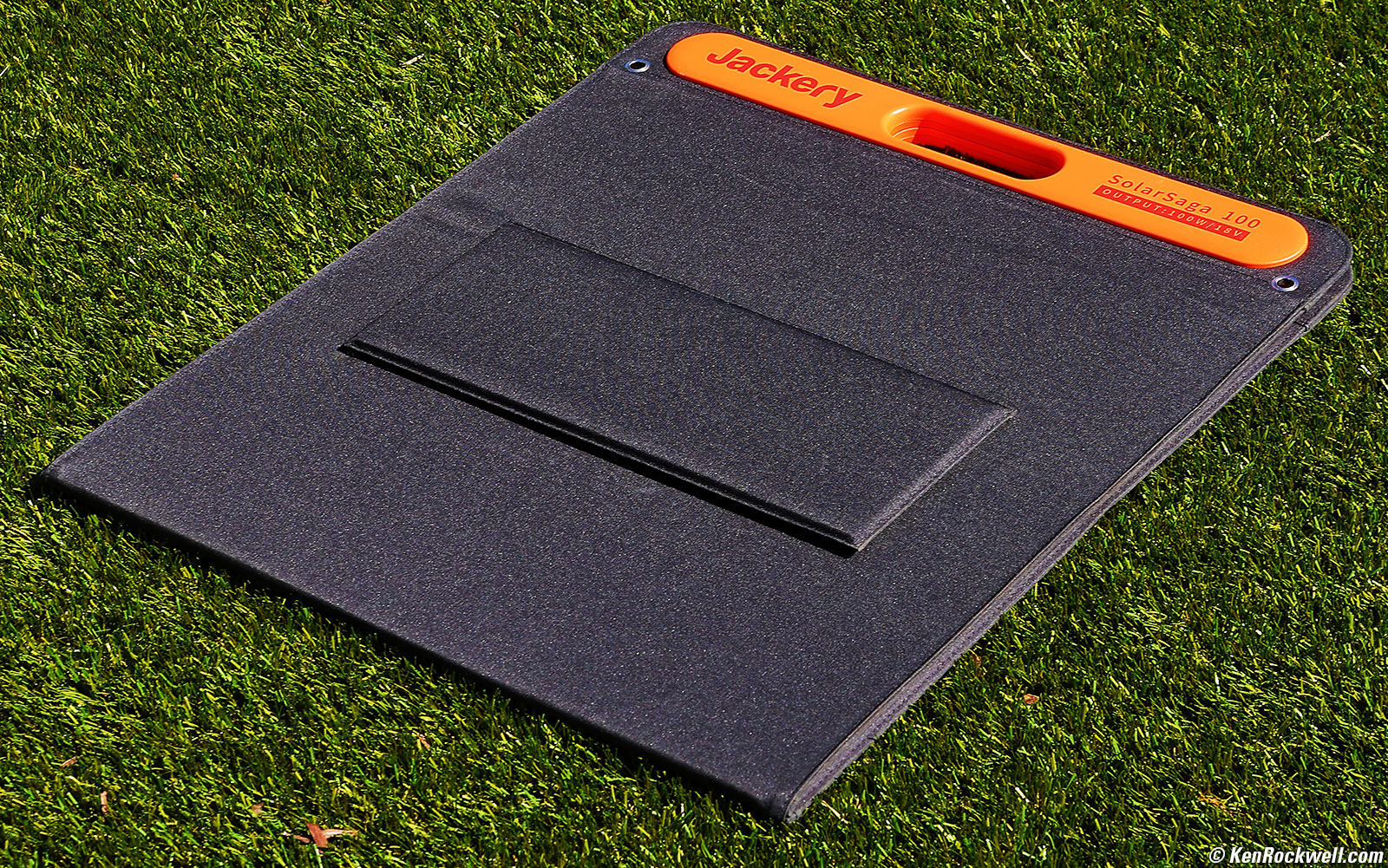

It folds in half, with magnetic closures, for carrying and storage:
Jackery SolarSaga 100W Panel. bigger.

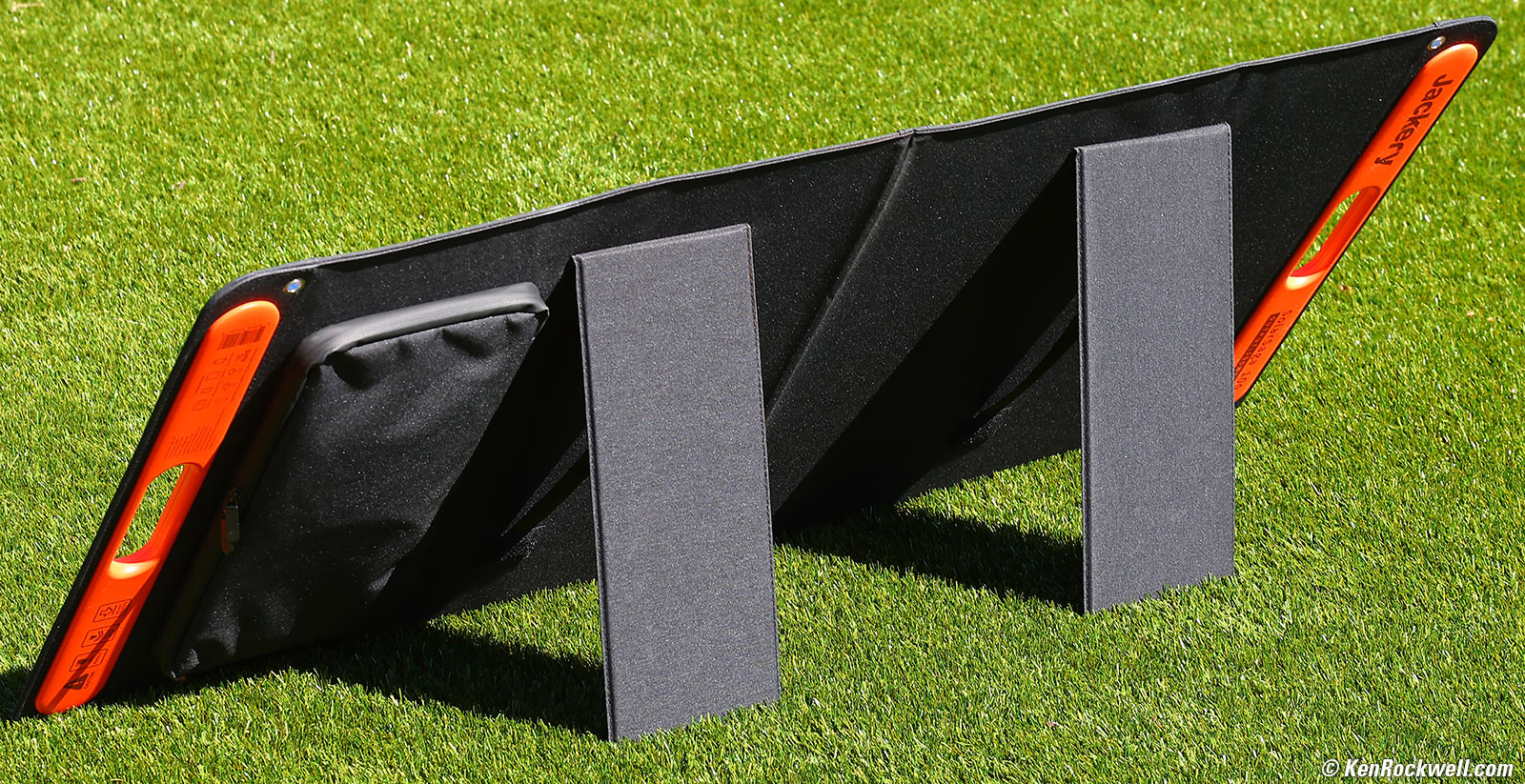

It has flip-out adjustable legs to support it at different angles:
Jackery SolarSaga 100W Panel. bigger.
When done, just pick it up, fold it in half and magnetic closures hold it closed. The legs are have clever elastic to retract them magically as you take the panel off the ground. Brilliant!

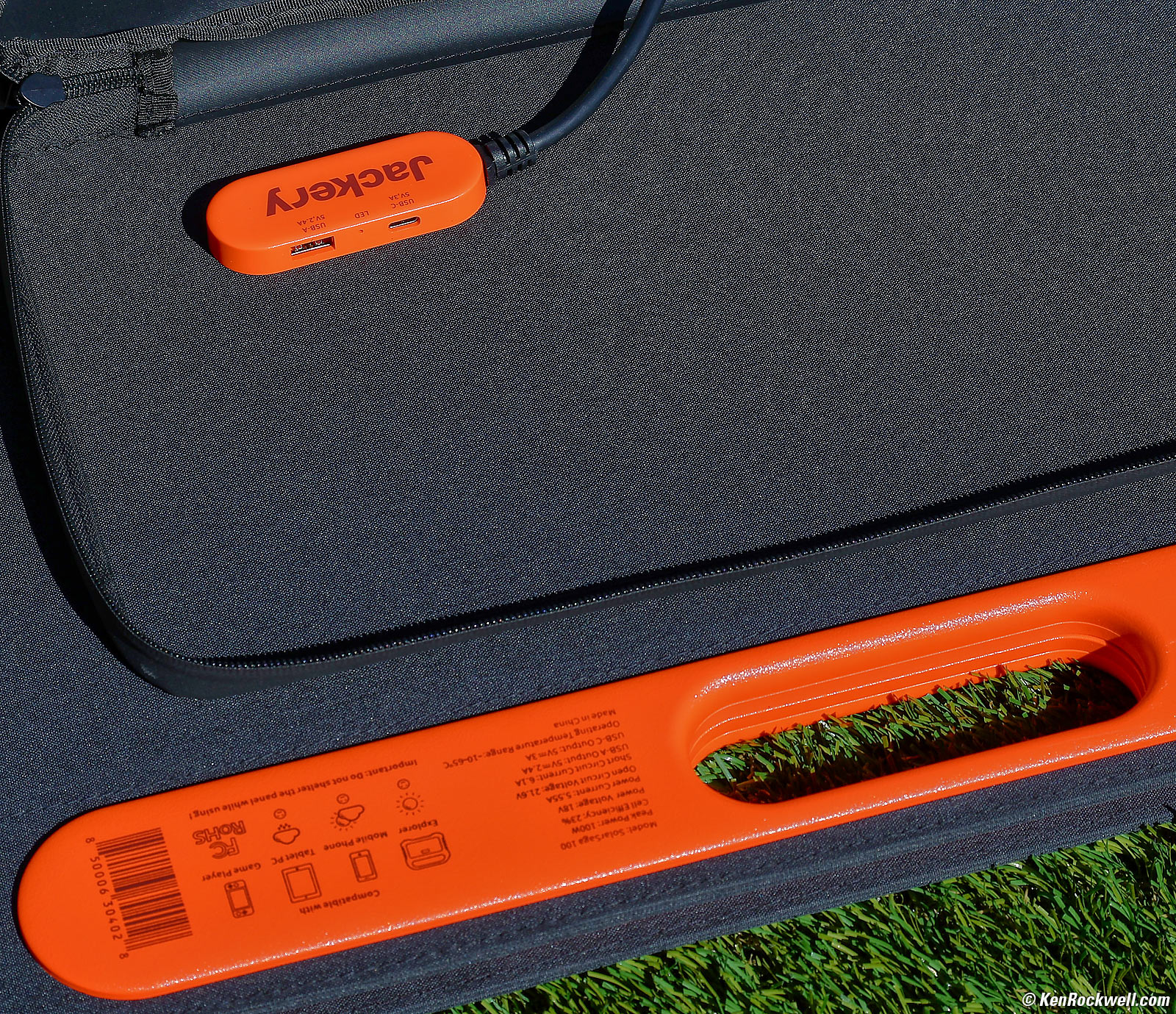

This panel is perfect for charging power stations like my Explorer 300 Power Station, and can charge other things via USB-C and USB-A ports hidden inside the zippered pouch that holds the long cord:
Internal USB-C and USB-A charging ports. bigger.
I got my SolarSaga 100W from Amazon. I'd also get it at B&H, or at eBay if you know How to Win at eBay.
Good intro top
Surprisingly robust power output all day long.
Charges power stations fast, even when cloudy but bright.
Sets-up and strikes super-fast.
16 AWG cord with standard 7.9 × 0.9mm (DC7909) plug.
Includes a tethered 7.9×0.9 to 8.0×2.0mm (DC7909 to DC8020) adapter to charge some other power stations, specifically the Jackery Explorer 1500 and Jackery Explorer 2000.
Extension cords are inexpensive and easy to find if you want to put the panel outside and charge or use the power inside.
Bad intro top
Nothing other than not being free.
Missing intro top
Not waterproof, but rated IP65 water-resistant.
No 7.9×0.9 to 5.5×2.1mm (DC7909 to DC5521) adapter included to charge smaller DC devices.
Specifications top
Introduction New Good Bad Missing
Specs Performance User's Guide More
I got my SolarSaga 100W from Amazon. I'd also get it at B&H, or at eBay if you know How to Win at eBay.
Cord
10-foot (3 meter) round 16 AWG cord with standard 7.9 × 0.9mm (DC7909) plug.Cells
Monocrystalline silicon.
Power Output
100 watts in full direct mid-day sunlight.
18 V at 5.556A.
Less in dimmer light, cloudier weather, far northern and southern latitudes, winter time, ends of the day and if the panel isn't pointed directly at the sun.
Open-Circuit Voltage
21.6 V.
Short-Circuit Current
6.1 A.
Efficiency specifications top
23%.
USB-C Output specifications top
Rated 15 watts (5 V at 3 A).
Actual output about 10W regardless of daylight level.
USB-A Output specifications top
12 watts (5 V at 2.4 A).
Size specifications top
Folded
610 × 535 × 35 mm.
24.0 × 21.1 × 1.4 inches.
Unfolded
1,220 × 535 × 5 mm.
48.0 × 21.1 × 0.2 inches.
Weight
9.1 lbs (4.1 kg).
Quality specifications top
Made in China.
Environment specifications top
-10 ~ +65º C (14 ~ 149º F).
Price, U. S. A. specifications top
February 2022 - February 2023
January 2022
Performance top
Introduction New Good Bad Missing
Specs Performance User's Guide More
I got my SolarSaga 100W from Amazon. I'd also get it at B&H, or at eBay if you know How to Win at eBay.
I'm impressed. With enough light I really get 100 watts out of this.
When first connected I saw an indicated 103W charging my Explorer 300 Power Station - even when partly cloudy!
Of course solar panels become less efficient as they heat up in sunlight, so the power drops as they sit out in the sun.
I even get 60 watts out of it near sunset. I'm very impressed.
I measure that it puts out about 1.2 watts per kilolux of ambient light. Full sun is about 100 kilolux, and shade is about 10 kilolux. Partly cloudy or cloudy bright might be 30 kilolux; it all varies. For instance, in 40 kilolux cloudy bright I was getting 48 watts charging my Explorer 300 Power Station.
I get about 10W from the USB-C port, even in dimmer light.
Your results will vary.
User's Guide top
Introduction New Good Bad Missing
Specs Performance User's Guide More
I got my SolarSaga 100W from Amazon. I'd also get it at B&H, or at eBay if you know How to Win at eBay.
If you want strong USB-C PD power, ignore the low-powered (15W maximum) outlet on the back of the panel. Instead use this to charge a power station with the direct DC mainline output and then take full USB-C PD power from the power station. Most power stations will let you use the PD outputs as they charge, too.
Good news is that you can use the panel's own USB outputs to charge small power banks or other devices at the same time as you're mainline charging a power station with the DC cord.
If you're an electronic engineer you can design a direct high power DC to PD converter to charge at high power via PD direct from the panel's main DC output, but be real: we don't want to leave our MacBook Pros sitting outside by themselves as they charge — even though converted to USB-C PD my MacBook pro charges in an hour.
Avoid using solar panels indoors: newer homes often use special heat- and infra-red-reflective glass which greatly reduces the output from solar panels. Panels make a great deal of their electricity from infra-red which is blocked by most glass.
Don't worry if you're charging something that uses this voltage but is rated to charge at less than 100W. Smaller devices, like my Anker PowerHouse 300 II which is only rated to charge at 65W from a solar panel, simply won't draw more than 65W. An advantage of using a larger panel is that in dimmer light, you can still get 65W out of it where a panel only rated 65W would not put out 65W in dimmer light.
More Information top
Introduction New Good Bad Missing
Specs Performance User's Guide More
I got my SolarSaga 100W from Amazon. I'd also get it at B&H, or at eBay if you know How to Win at eBay.
Jackery's page on the SolarSaga 100W.
Have fun!
