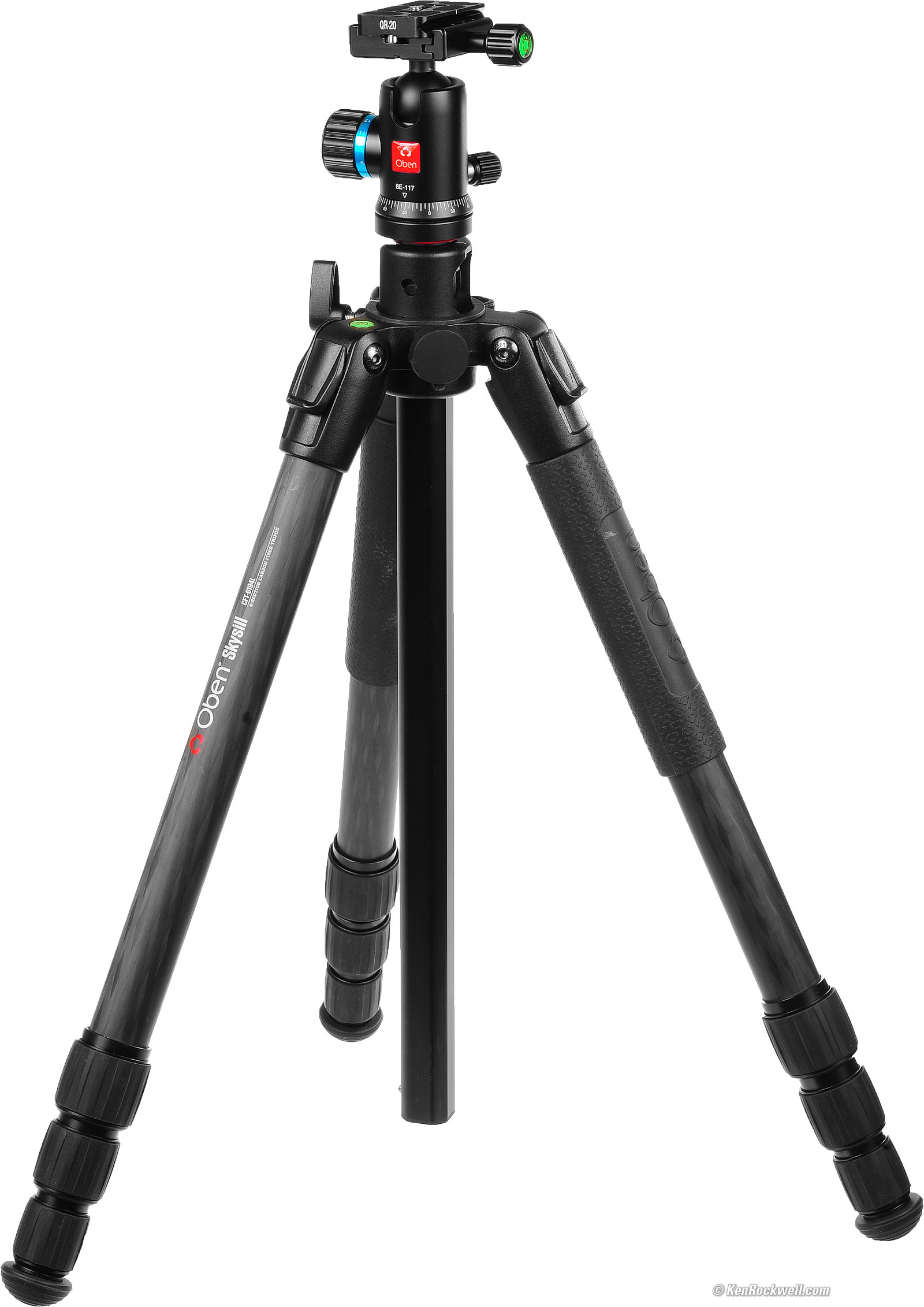

Center column in usual spot. bigger.
Introduction top
Specs Accessories User's Guide
I buy only from these approved sources. I can't vouch for ads below. |
The Oben CFT-6194L is a sturdy mid-sized carbon-fibre tripod with a twist: its anodized aluminum alloy center column pulls up and out, and then re-inserts at a 90º angle so you can move your camera in or out laterally over flames, your desk, a big hole, a fast-flowing stream or anything where you'd rather not set the legs.
More than just a great way to hold a camera over a stream or your desk without covering any part of your desk, this also makes a very sturdy microphone stand with the proper adapters.
Press the unlock button on the bottom of the center column so you can pull it up and out. Poke it back in at 90º and you're all set.
The lateral column locks at any position in or out. Here it is less extended:

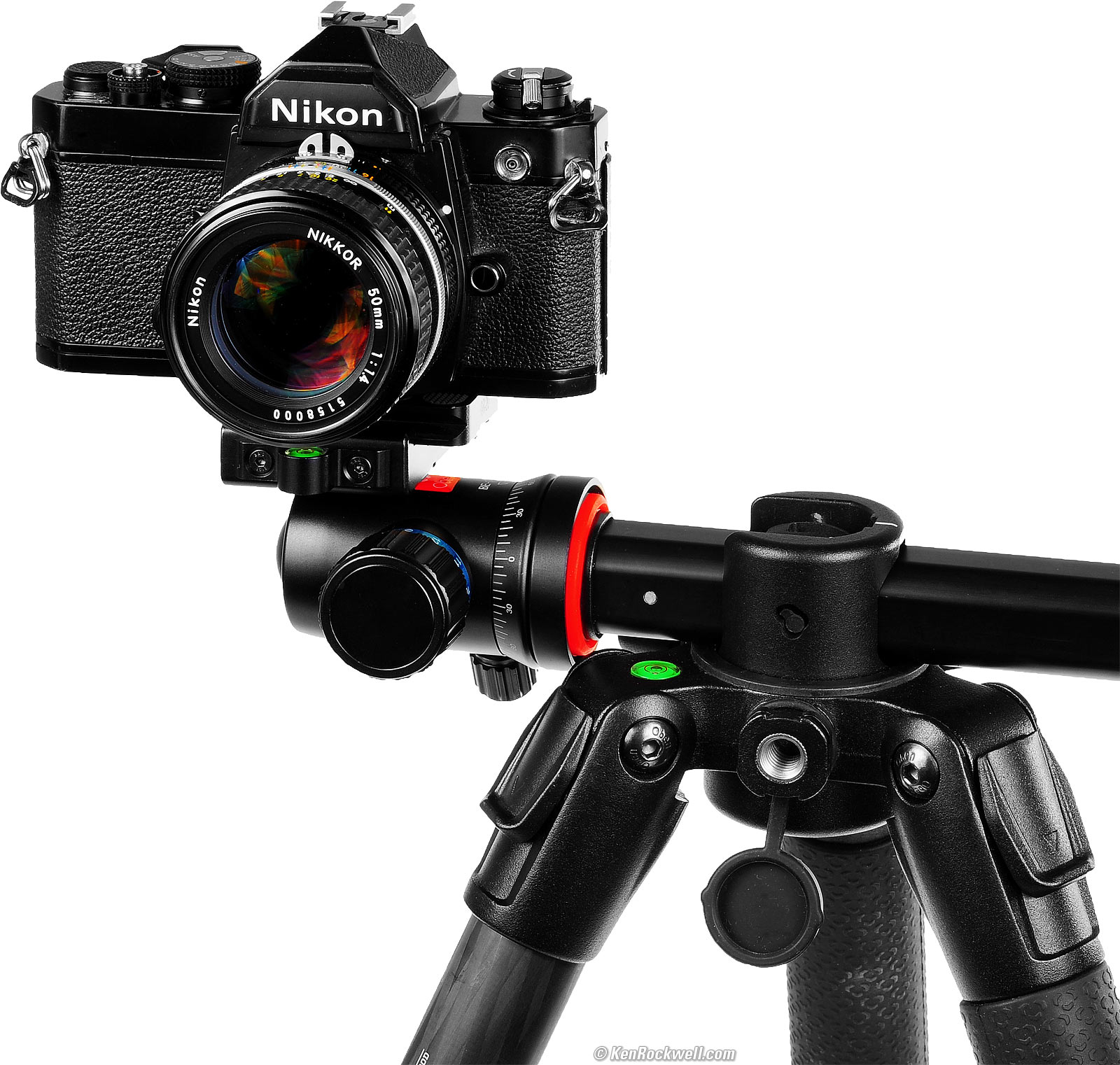

Nikon FM and 50mm f/1.4 AI-s on BE-117 Ball Head. I left the flap open to show the anti-twist ⅜″ × 16 TPI socket for articulating and accessory arms to hold iPads or lights & etc. bigger.
I'd get my CFT-6194L Legs & Lateral Column at B&H, or I got them along with the BE-117 Ball Head as shown together as a kit at B&H.
Good intro top
Sturdy, solid and light weight.
Well made: all the twist locks work positively so legs and columns slide and lock smoothly, and the friction of the leg pivots arrived perfectly adjusted for easy use without collapsing.
Non-rotating legs and column make it easy to set and strike.
Legs open to any of three locking angles or anything in between.
"One touch" leg angle locks, just press to release.
Column locking lever pulls out to allow it to rotate and avoid interference (on left):

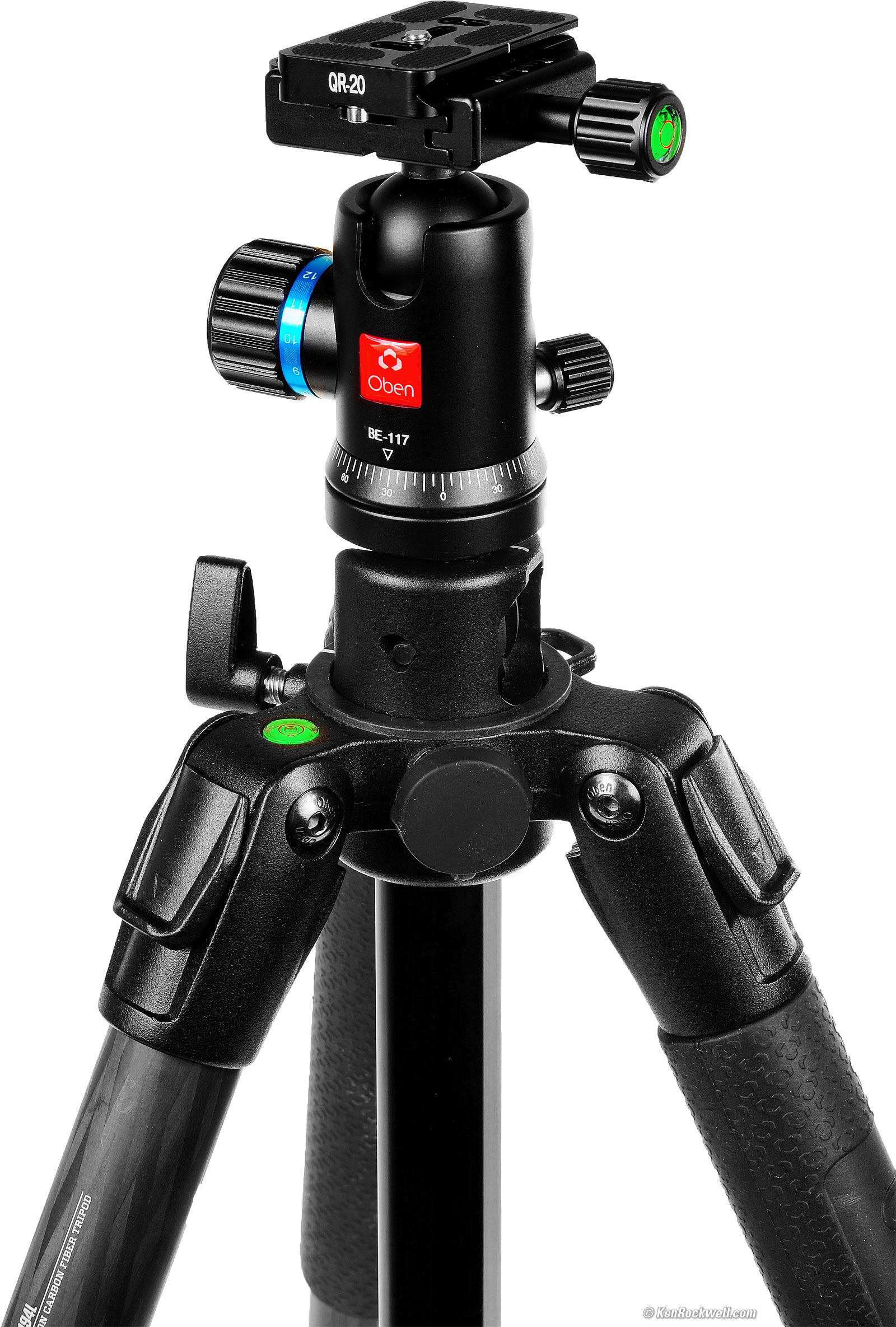

BE-117 Ball Head on CFT-6194L Carbon-Fibre Tripod. bigger.
Hard rubber insulating grips on two of the legs.
5 year limited warranty.
Huge -30º ~ +60º C (-22º ~ +140º F) operating range.
Bubble level.
Interchangeable feet. A set of spikes is included to replace the big rubber feet:

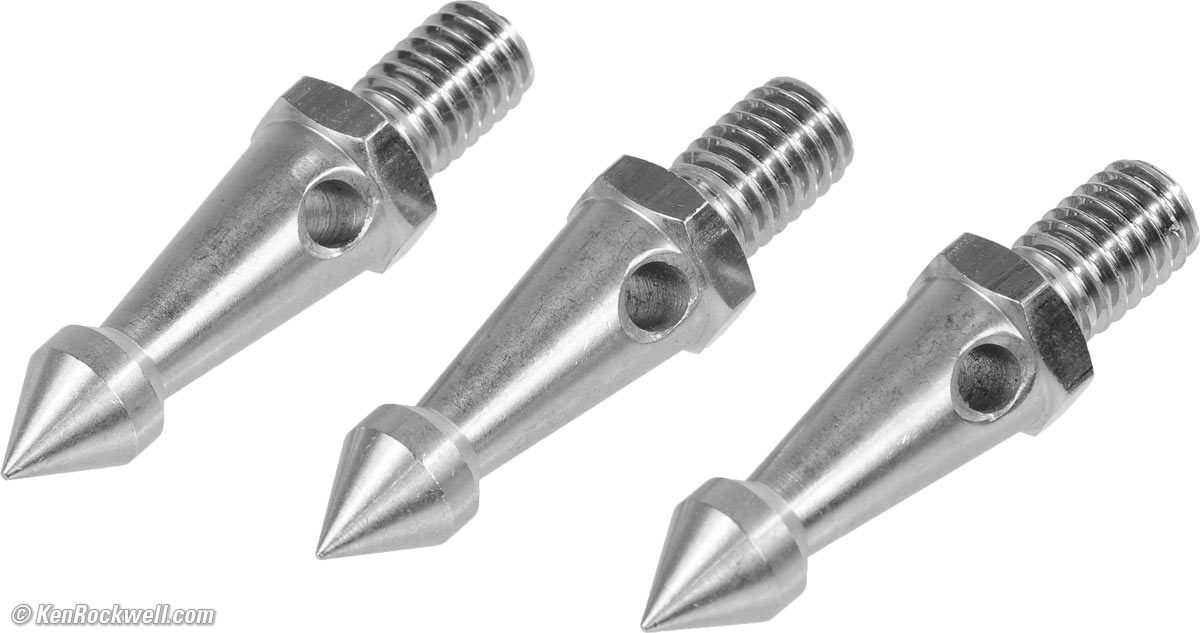

Included spikes. bigger.
Reversible mounting screw for ¼″ × 20 TPI or the usual ⅜″ × 16 TPI threads.
Anti-twist ⅜″ × 16 TPI socket for articulating and accessory arms.
Case and shoulder strap included:

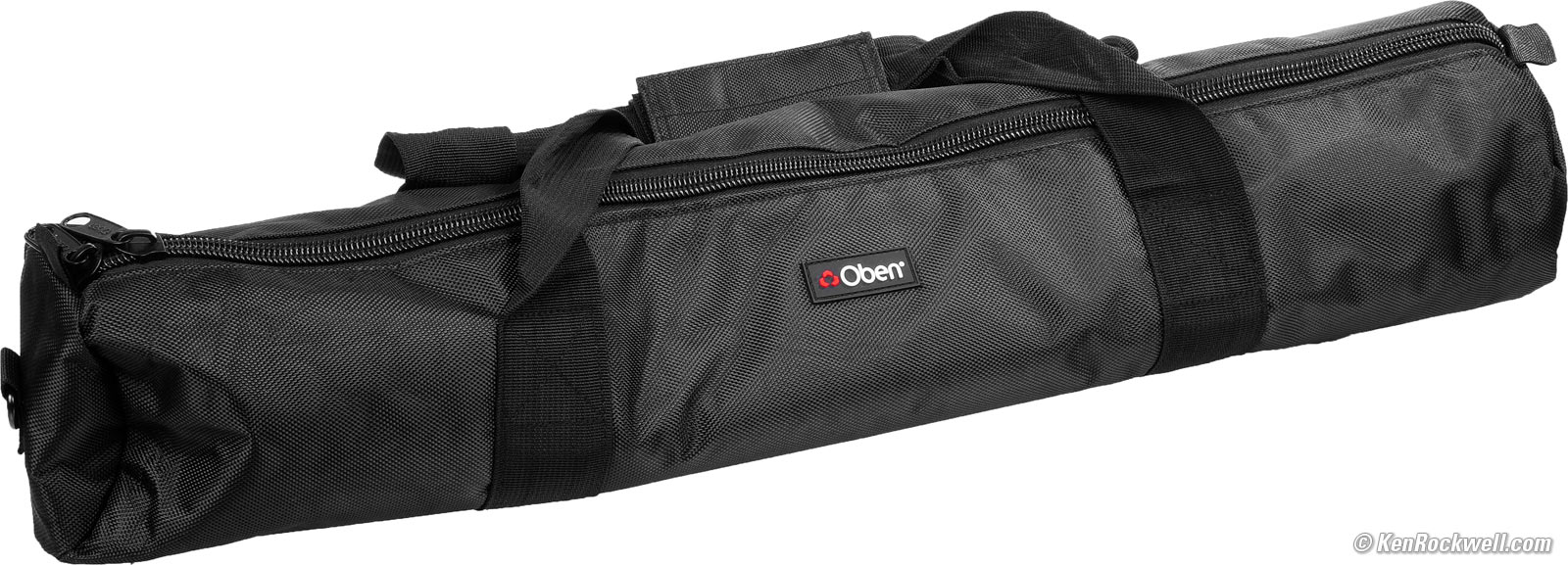

Included Soft Case. bigger.
Tools and clever snap-on holder included:

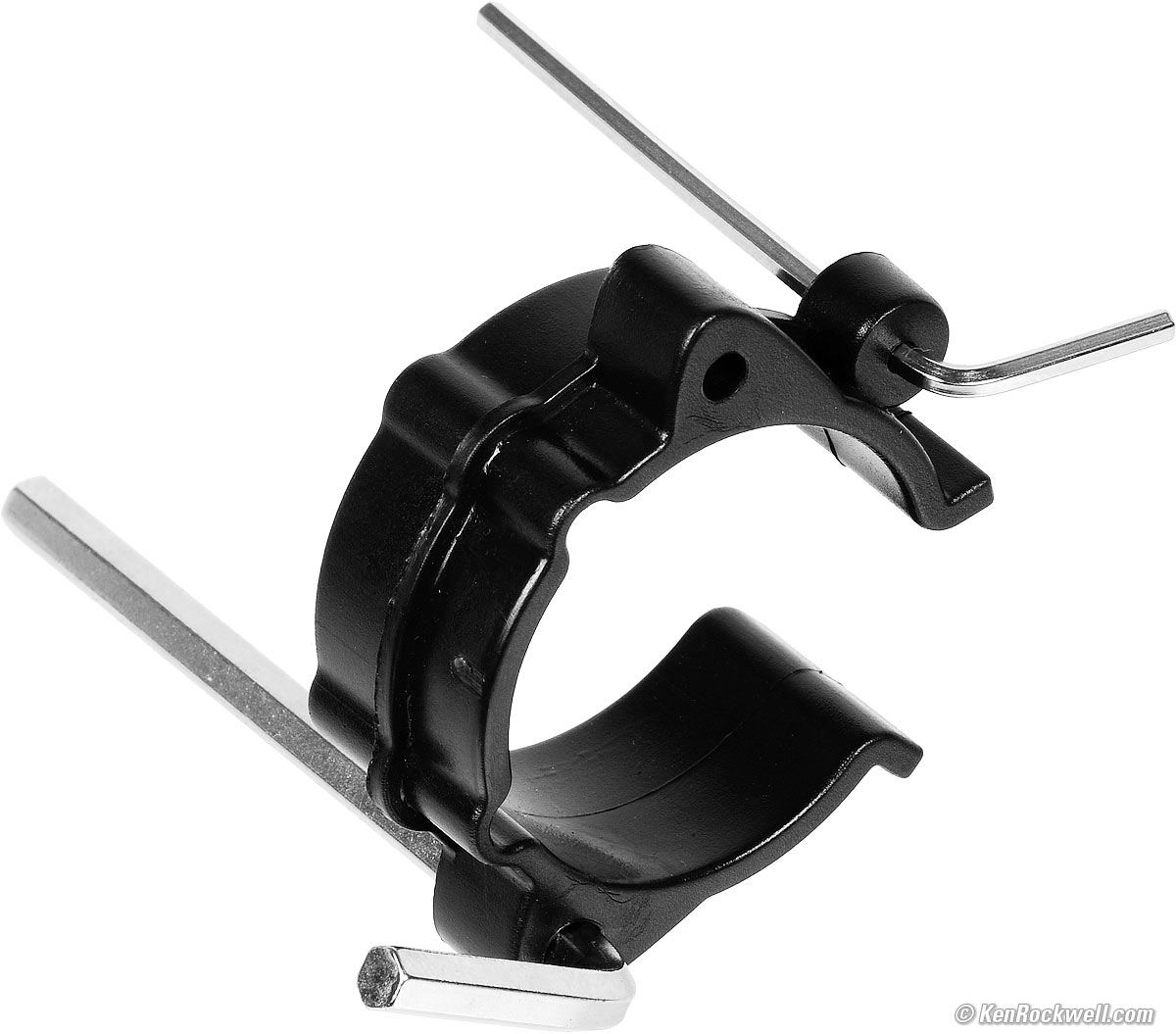

Included Snap-On Tool Set. bigger.
Bad intro top
Nothing, other than not being free and not being Made in U.S.A., FRANCE, Switzerland, GERMANY, Austria, ITALY or similar developed country (from which it would cost $2,999).
Missing intro top
No hook on bottom of the center column; there's a column release button there instead.
Specifications top
Specs Accessories User's Guide
I'd get my CFT-6194L Legs & Lateral Column at B&H, or I got them along with the BE-117 Ball Head as shown together as a kit at B&H.
Load Capacity specifications top
Holds 19 lbs (8.6 kg).
Leg Tube Outer Diameter specifications top
29.7mm, measured.
Weight specifications top
Legs
4.1325 lbs. (66.120 oz. or 1,874.5 g), actual measured weight.
Rated 4.2 lbs (1.9 kg).
Optional BE-117 Ball Head
14.305 oz. (0.894 lbs. or 405.3 g), actual measured weight.
Rated 13.7 oz (380 g).
Load to Weight Ratio specifications top
4.53 : 1, rated.
Dimensions specifications top
Maximum Height: 67" (170 cm) with center column up.
Maximum Height: 53" (130 cm) with center column down.
Minimum Height: 3.6″ (9.1 cm) with 90º column.
Closed Length: 21.5" (54.6 cm).
Made in specifications top
China.
Operating Environment specifications top
-30º ~ +60º C (-22º ~ +140º F).
Included specifications top
Tripod (possibly with BE-117 Ball Head as shown).
Set of three spike feet.
Case & strap.
Tool set.
Nice printed manual and 5 year limited warranty.
Price, U. S. A. specifications top
April 2022
$429.95: Oben CFT-6194L carbon-fibre tripod legs & lateral center column (only)
$84.95: Oben BE-117 Ball Head (any head works on these legs).
$469.95: kit with CFT-6194L legs, lateral center culumn & BE-117 head.
Optional Accessories top
Specs Accessories User's Guide
I'd get my CFT-6194L Legs & Lateral Column at B&H, or I got them along with the BE-117 Ball Head as shown together as a kit at B&H.
Oben TS-100 Tripod Strap with Quick-Release Loop and Spring Lock.
Oben TS-110 Deluxe Tripod Strap with Swivel Clip.
Oben STB-10 Tripod Hammock.
User's Guide top
Specs Accessories User's Guide
I'd get my CFT-6194L Legs & Lateral Column at B&H, or I got them along with the BE-117 Ball Head as shown together as a kit at B&H.
Be careful not to over-extend the lateral column with a heavy camera.
Hint: Align the lateral column directly over one of the legs for greatest stability. Also if at lower heights, consider extending the length and angle of the leg running under the lateral column.
Oben's User's Guide.
