Robus RTH-1050
55 lb (25 kg) Capacity Ball Head
-30º ～ +60º C (-22º ～ 140º F)
Compatibility Specification User's Guide
Robus RTH-1050 Ball Head (30.0 oz./850 g with plate, $320). bigger. I got mine at B&H.
This all-content, junk-free website's biggest source of support is when you use those or any of these links to approved sources when you get anything, regardless of the country in which you live. Thanks for helping me help you! Ken.
April 2021 Better Pictures Robus Reviews Canon Sony Nikon Fuji LEICA Zeiss Hasselblad All Reviews
I buy only from these approved sources. I can't vouch for ads below. |
Introduction top
Compatibility Specification User's Guide
This Robus RTH-1050 is a New-York-City-designed, Chinese-made heavy-duty ball head built to replace Really Right Stuff.
It's very nicely made and looks and feels like Really Right Stuff, without the made-in-U.S.A. price tag.
Really Right Stuff has a five-year warranty, while this Robus ball head has a Ten-Year Warranty — although I've never worn out any of my tripods, even the cheap one my dad gave me back in 1973 as a kid.
I got my Robus RTH-1050 at B&H.
Good top
Compatibility Specification User's Guide
Adjustable drag lets you set how free — or not — the ball becomes when unlocked:
Robus RTH-1050. bigger.
Everything is as smooth, solid and precise as a Swiss bank vault.
Everything locks and unlocks easily.
A solid block of precision, just like Really Right Stuff.
Bubble level.
Includes an Allen wrench to keep it tight.
Includes a fuzzy carrying pouch:
Included fuzzy pouch. bigger.

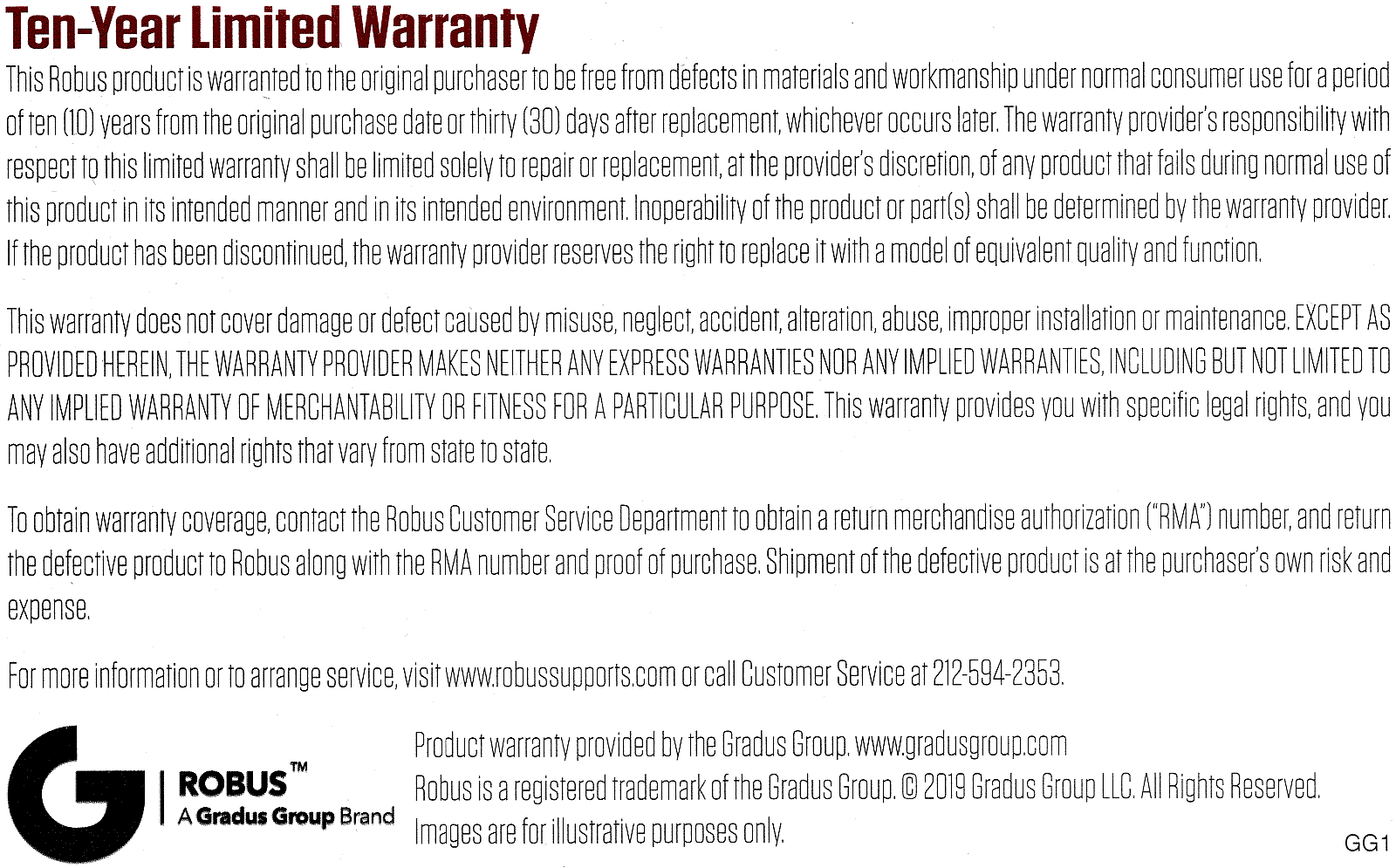

Ten Year Warranty:
Ten Year Warranty. bigger.
Maybe I've just been lucky, but whenever I've called them at (212) 594-2353 someone who could actually answer my questions picked up the phone!
Bad top
Compatibility Specification User's Guide
Offshored to China; not made in U.S.A..
Missing top
Compatibility Specification User's Guide
No high price.
Compatibility top
Compatibility Specification User's Guide
I got my Robus RTH-1050 at B&H.
Like most heads, this is universal and works everywhere.
It has a standard ⅜″ × 16 TPI bottom socket which attaches to all standard tripod legs made for about the past 100 years, from the gigantic ROBUS RC-5570 to the tabletop Oben CTT-1000, as well as everything else from Manfrotto, Gitzo, Really Right Stuff and Bogen.
It takes standard Arca-Swiss plates, and comes with one with a ¼″ × 20 TPI thread as shown.
Specifications top
Compatibility Specification User's Guide
I got my Robus RTH-1050 at B&H.
Maximum Load specifications top
55 Pounds.
25 kg.
Lateral Tilt specifications top
±45º.
Vertical Tilt specifications top
0 ~ +90º.
Horizontal (Panning) Range specifications top
Unlimited.
Made of specifications top
Solid billet anodized CNC aluminium.
No plastic anywhere.
Markings specifications top
LASER engraved.
Base Diameter specifications top
2.75" (70 mm).
Height specifications top
5" (127mm).
Weight specifications top
29.993 oz. (850.25 g) actual measured weight with included Arca-Swiss style plate.
Rated 28.8 oz. (800 g).
Environment specifications top
-30º ～ +60º C (-22º ～ 140º F).
Included specifications top
Big ball head.
Arca-Swiss style plate.
Nickle-plated 4mm Allen-style wrench.
Instructions and warranty.
Price, U. S. A. specifications top
April 2021
User's Guide top
Compatibility Specification User's Guide
I got my Robus RTH-1050 at B&H.
|
|
Robus RTH-1050. bigger. |
Robus RTH-1050. bigger. |
To attach your camera, undo the top knob, remove the plate, screw the plate to the bottom of your camera, re-attach the plate to the head and tighten the top knob. As with all Arca-Swiss plates, you may tighten it at just about any forward or back position; the plate will slide forward and back until you tighten the knob.
The little knob on the bottom left above locks or unlocks the horizontal (panning) rotation.
The big knob on the right locks or unlocks the ball. Be sure to hold your camera when unlocking to avoid having it flop over.
The FRICTION setting inside the big knob lets you set a residual level of drag. This sets how much drag remains when you unlock the ball. Set this so your camera moves smoothly when you unlock the ball. If you set it too loose your camera will just flop around when unlocked, and if set too tight will make it hard to reposition your camera. Set it just right and ahhhh, loosen the ball and it's easy to make precise position adjustments.
Robus suggests if you can't unlock the head, to turn the tension dial to the minimum, then tighten the big locking knob all the way clockwise, then when you loosen the big locking knob the head should unlock.
Robus cautions not to use the head when it's wet and not to put it in salt water.
