Canon 18-200mm IS

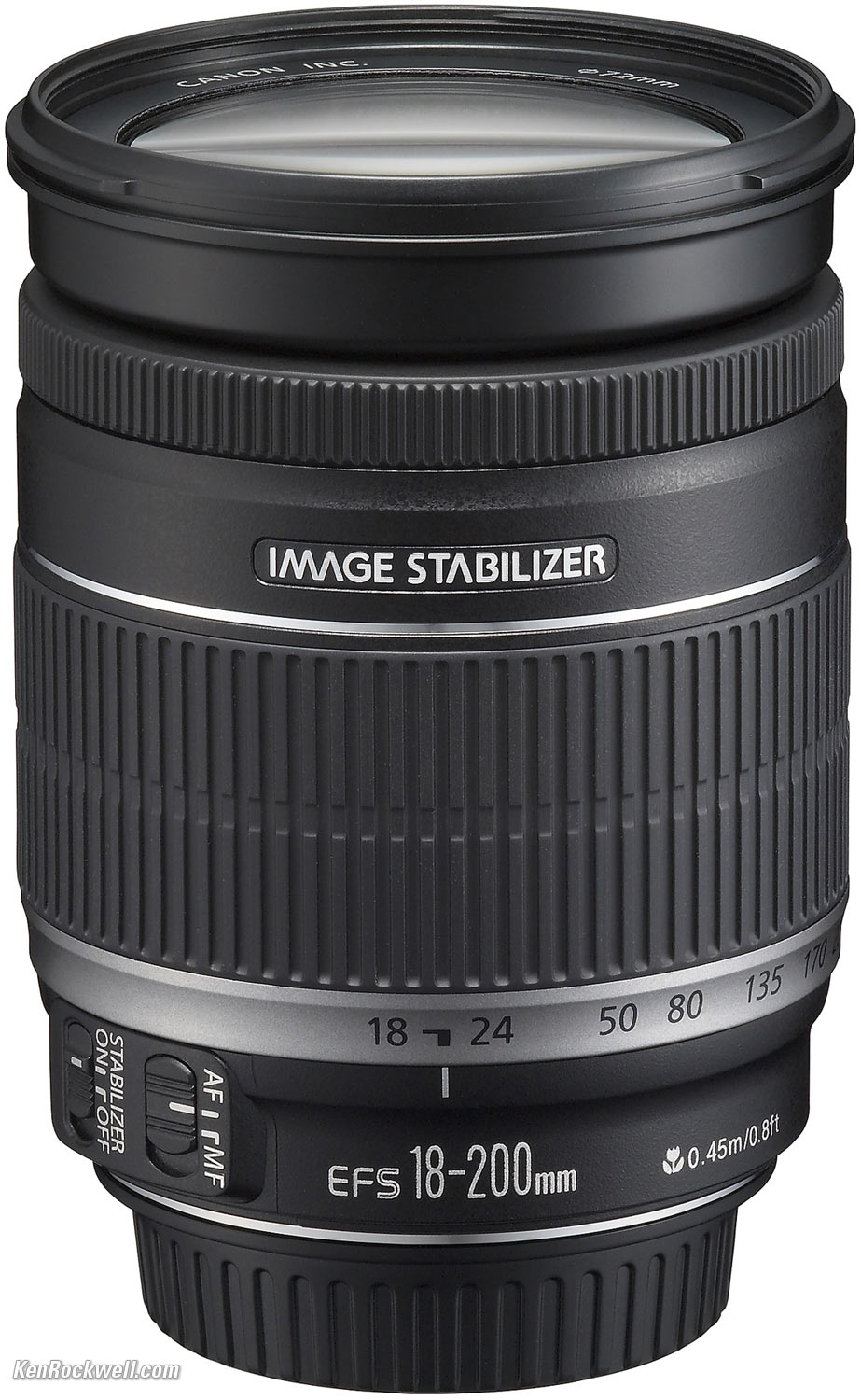

Canon EF-S 18-200m f/3.5-5.6 IS EF-s (1.6x cameras only, $600, 72mm filters, 21.0oz/596g). enlarge. I'd get it at Amazon, Adorama or Ritz. It helps me keep adding to this site when you get yours through these links. Thanks! Ken.



July 2009      More Canon Reviews



Introduction        top

Intro   Specs   Performance     Recommendations

adorama

Ritz Camera

I personally buy from Adorama, Amazon, Ritz, B&H, Calumet and J&R. I can't vouch for ads below.



This lens does it all for Canon's 1.6x consumer DSLRs. It focuses super fast, zooms from wide-angle to super-telephoto, and gets close enough for macro shots. It could be the only lens you ever need for most Canon DSLRs.

It's a great lens, but has one potentially serious flaw in the AF system for many users.

The Canon 18-200 IS has the old AF system that moves the focus ring as the AF works, so you have to keep your hands off of it as it moves.

Worse, cannot turn this ring for manual focus unless you first move a switch to disengage the AF motor.

This is a serious shortcoming compared to Nikon's 18-200mm VR, on which you the focus ring never turns unless you move it, and which you may move at any time for instant manual override.

On this Canon, the AF mechanism is far more primitive. It's quite a pain to have to stay clear of the focus ring during AF, and have to move a switch to get to manual focus. Poo.

Three years after Nikon's 18-200mm VR, Canon finally has a do-everything lens for its 1.6x consumer DSLRs. With all respect to Canon, Canon has had the world's first 28-135mm IS lens for film and full-frame cameras since the 1990s, for which Nikon had no equivalent until Nikon's crummy 24-120mm VR of 2003.

Compatibility: The EF-S 18-200mm IS only works on Canon small-format 1.6x digital cameras, like all the digital Rebels and 20D, 30D, 40D and 50D. It won't even mount on film, 1.3x or full-frame cameras. It will not mount on the older D30, D60 or 10D either.



Specifications         top

Intro   Specs   Performance     Recommendations

Focal Length

18-200mm.

When used on a Canon 1.6x camera, it gives angles-of-view similar to what a 29-320mm lens does when used on a film or full-frame camera.



Optics

16 elements in 12 groups.

2 are of UD (magic) glass and 2 aspherical elements.

5-group helical zoom.



Close Focus

1.5 feet (0.45m).



Maximum Reproduction Ratio

1:4.2.



Diaphragm

Canon claims round.

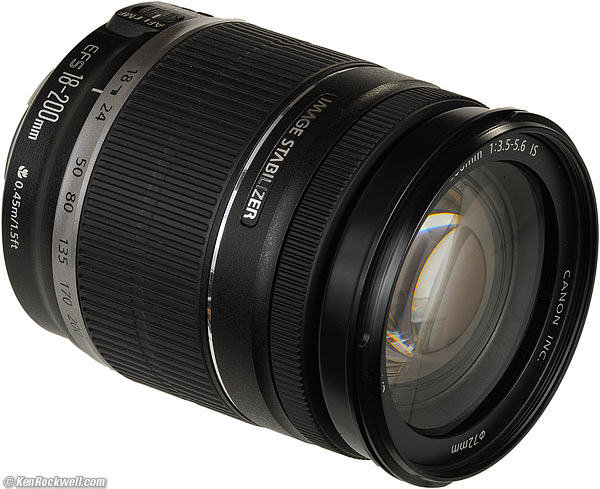

Canon 18-200mm IS

Canon 18-200mm IS. enlarge.



Filter Threads

72mm.

Plastic.

Do not rotate with focus or zoom

Do not move with focus, but do move in and out with zoom.



Size

3.1" (78.6mm) diameter.

4.0" (100.5m) extension from flange, set to 18mm.

6.8" (172.5mm) maximum overall set to 200mm.



Weight:

21.040 oz (596.5g) measured

Canon specifies 21.0 oz. (595g).



Announced

26 August 2008.



Available

October 2008.



Canon Item Code

2752B002.



Price

$600, USA July 2009.

MSRP $699 USA, 89,000 Yen (Japan), at introduction in August 2008.

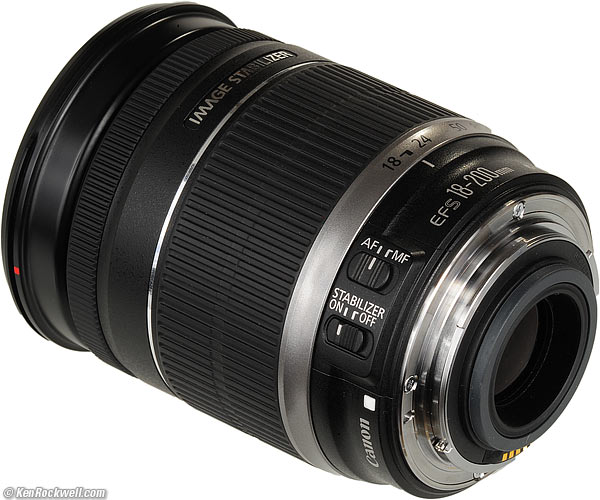

Canon 18-200 IS

Canon 18-200 IS. enlarge.



Performance        top

Intro   Specs   Performance     Recommendations

The Canon 18-200mm IS is a sharp lens with a huge zoom range, super-fast AF and very close macro focusing It has a healthy dose of distortion at some settings as expected, but its only real downfall are the primitive AF mechanics.



Focus



Autofocus

AF is just about instantaneous. it's also very accurate.

Keep your hands off the focus ring, which rotates during AF.



Manual Focus

The focus ring moves fast and easily, but that's the problem. It rotates less than 1/8 of a turn to bring you from infinity to 1.5 feet ((45cm), which makes it nearly imposs9ble to focus precisely at the longer focal lengths.

The 18-200mm IS is optimized for AF, not manual focus.



AF/MF Switching

You have to move a switch — drats!

There is no instant override as on better Canon lenses.

Worse, you need to stay clear of the focus ring in AF mode.

This is the saddest part of this lens. I consider this a serious oversight, especially when the Nikon 18-200mm VR does this all automatically.

The AF system of Canon 18-200mm IS harkens back to Canon's first AF lenses of 1987.





Distortion

Dad and Ryan

Ryan and Dad at the Beach, 24 June 2009. note curved horizon. enlarge.
(Canon T1i, 18-200mm IS at 35mm.)

Distortion is usually invisible, but if you have a straight line running along an edge, you may see it. The photo above shows it at its worst, and unless you're shooting buildings for a living, not as bad as I make it out to be.

As expected, there is barrel distortion at the wide end, and a lot of pincushion distortion throughout the rest of the range as shown above. The barrel distortion is complex, making it difficult to correct with simple tools.

If you worry, use these values in Photoshop CS2 and newer's Lens Distortion Correction tool.



at infinity

18mm
+4.5**
24mm
-1.0
35mm
-4.0*
50mm
-4.2
110mm
-3.0
135mm
-2.0
200mm
-2.0

© 2009 KenRockwell.com. All rights reserved.

* Waviness remains.
** Lots of waviness remains.

Focal Length Encoding

Focal lengths come out on EXIF as close as I can read them off the zoom ring.



Lateral Color Fringes

There are often minor lateral color fringes if you're looking for them.

Nikon has Canon beat here, because Nikon's Gen II cameras automatically correct this and make them a thing of the past, while Canon's cameras, at least up through 2009 as I write this, still can't correct it, and show whatever the lens has in all its gory detail.

Normal people won't see this, but if you worry about this, try a newer Nikon which corrects these automatically.



Macro

Macro 18-55mm IS

At close focus distance at 55mm.(Rebel T1i at +4 saturation.)

This 18-200mm IS gets so close you won't need a separate macro lens.

Flower

At close focus distance at 200mm. (Rebel T1i at +4 saturation.)



Sharpness

Las Olas

Las Olas, shot at 80mm on a Rebel T1i at ISO 100. enlarge.

Las Olas

Bar, Las Olas, shot at 18mm and f/5.6 on a Rebel T1i at ISO 3,200. enlarge.

Sharpness is fine.

If you split pixels, not as good as Nikon's 18-200mm VR if you peer at your files at 100%.

If you shoot the Nikon 18-200mm VR on a D5000/D90/D300 and compare it to files shot on a (Rebel T1i and this 18-200mm IS, the Nikon looks worlds better at 100%, but who cares? Only nerds look at images blown up that far.

If you shoot Canon, this is a very useful lens, and it looks great at rational sizes.

Likewise, the extraordinary Canon 70-200mm f/4 L IS will look better if you look at files at 100%, but it costs more, it's bigger and heavier, doesn't focus anywhere near as close, and hardly zooms at all.



Zooming

Zooming is good, which is important for a lens that zooms this far.

There is so much moving around as you zoom that it's more difficult to zoom if you point the lens directly up or down, since you now have to pull half the lens up or down with the zoom ring. If this is difficult for you, point the lens the other way first if it helps you zoom in (pointed down) or zoom out (point it up). It's no problem pointed horizontally.

The range is a bit cramped at the shorter end, making it less easy to set precise framing. It's fine throughout the rest of the range.

The lens will extend when carried on a camera around your neck and it points down. There is a lock to keep the lens set to 18mm, but it's as much trouble to set ad release this lock as it it to have to rack the zoom back in as you bring the camera to your eye.

At infinity, 200mm really is 200mm.

At closer distances, like 20 feet and closer, 200mm isn't really 200mm. At close range, you'll see almost no change as you zoom between 100mm and 200mm.

This is normal for ultra-range zooms that focus as closely as the 18-200mm. Canon and Nikon both play optical tricks to allow long lenses to focus this close. Those tricks are that they reduce the focal length as yo focus more closely, which is how they get these lenses to focus this close. You probably don't realize this, but physics tells us that it is impossible to focus a true 200mm lens any closer than 800mm (0.8 meters or 2.6 feet). This Canon 18-200 focuses to 1.5 feet or 0.45m!



Recommendations        top

Intro   Specs   Performance     Recommendations

I've wanted one of these for Canon ever since Nikon came out with theirs in 2005.

Except that I dislike the klunky AF/MF switching and the focus ring trying to turn under my fingers in AF, if I shot Canon, I would have had one of these Canon 18-200mm lenses the day it came out.

It is much heavier than smaller lenses. with more restricted zoom ranges.

When I do shoot Canon, it's full-frame, and this lens doesn't work on full-frame.



Deployment

I'd leave a 72mm Hoya Super HMC UV on the lens at all times. I wouldn't bopther buying the extra-cost plastic hood.

I was going to use this as part of a larger pro system, I'd attach a 72->77mm step-up-ring to convert this to today's pro standard of 77mm, and use a 77mm Hoya UV filter for protection. This is what I really do; I just put on a step-up ring when I get a lens like this and treat it as if it's a 77mm filter thread len as long as I have it.

I'd pitch the flat Canon cap that came with this lens new, and get a superior "pinch" type Nikon cap in 72mm (or 77mm), too. I'm not kidding: I really do use Nikon caps on my Canon lenses because they are much easier to use in the field.

If I was working in nasty, dirty areas, I'd forget the cap, and use an uncoated 72mm Tiffen UV filter instead (or in 77mm). Uncoated filters are much easier to clean, but more prone to ghosting.
