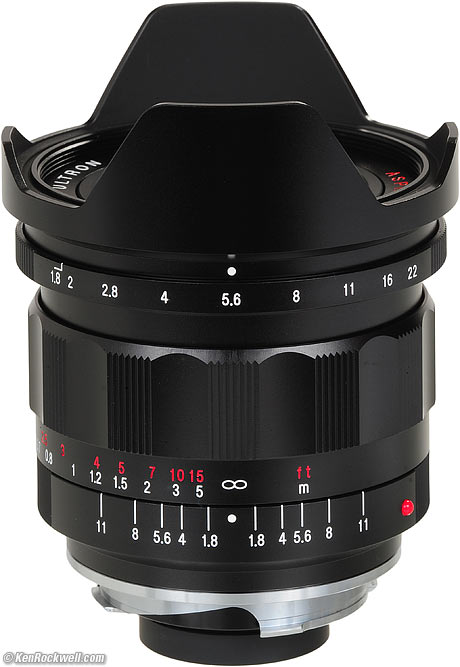

Voigtlander 21mm f/1.8 ULTRON

Voigtländer 21mm f/1.8 ULTRON (LEICA M mount, 58mm filters, 14.6 oz./412g, about $1,249). enlarge. This free website's biggest source of support is when you use these links, especially these directly to it at Adorama, at Amazon or at eBay (see How to Win at eBay) when you get anything, regardless of the country in which you live. It helps me keep reviewing these specialized lenses when you get yours through these links — but I receive nothing for my efforts if you buy elsewhere. Thanks for your support! Ken.

March 2013   Voigtländer Reviews   LEICA   LEICA Lenses   All Reviews

See also LEICA 21mm Lenses and my Voigtlander 21mm f/4 review.

How to Use Ultrawide Lenses



Introduction         top

Intro   Specs   Performance   Compared   Recommendations   More

Adorama pays top dollar for your used gear.

B&H Photo - Video - Pro Audio

This Voigtländer 21mm f/1.8 lens fits LEICA M cameras, and it's a much better performer than I expected. It has less distortion than any other 21mm LEICA or LEICA-mount lens I've tested, and it's sharp, making it a great choice for any kind of photography, even if you don't need its super speed for low-light.

It's almost as sharp as LEICA's 21mm f/3.4 ASPH and previous 21mm f/2.8 ASPH lenses, meaning this Voigtlander lens is still much sharper than any SLR zoom, and more than sharp enough for any purpose to which anyone who buys this lens will put it.

This 21mm f/1.8 surprisingly has very little distortion – less than LEICA's own current 21mm lenses!

You'll never see any sharpness difference between this Voigtlander and LEICA's 21mm lenses in real pictures, and if brick walls are your thing, you will see the lack of distortion in this Voigtlander lens compared to the stronger distortion in LEICA's 21mm lenses.

I have not yet tested the LEICA SUMMILUX-M 21mm f/1.4 ASPH. The LEICA 21/1.4 is almost a stop faster, but at $7,000, is two-and a half stops (5.6 times) more expensive, as well as an ergonomically foolish lens needing VIII filters intended mostly for playboys. Based on my test of the very similar LEICA SUMMILUX-M 24mm f/1.4 ASPH, I predict that the LEICA 21mm f/1.4 has much worse distortion and probably is only about as sharp as this Voigtlander lens. The 24mm f/1.4 is loaded with distortion, and its curved field makes it much less sharp (by LEICA standards) than slower lenses for many uses. I'd rather have this very practical (58mm filters) Voigtlander 21/1.8 than the crazy LEICA 21/1.4. I actually own the far more practical LEICA 21/3.4 ASPH, which replaced my 21/2.8 ASPH, which are slightly sharper than any of these super-speed lenses.

This Voigtlander 21/1.8 is pretty handy; it works well on a LEICA and it's fast, too. I'm more impressed with this lens than I expected it to be.

Luckily for use on the LEICA M9, this Voigtlander 21 1.8 performs marvelously when set manually to the LEICA 21mm f/2.8 11 134 profile. When set this way there is minimal corner falloff or color shift. Even without a profile, it works pretty well on an M9.

The 21/1.8's biggest flaw for pixel-counters is that it has some lateral color fringes (secondary lateral chromatic aberration), visible if you look for this sort of thing when shot digitally, but otherwise it's invisible for normal use. By comparison, for those of you who demand the best, LEICA's current 21mm f/3.4 ASPH and the previous 21mm f/2.8 ASPH have no lateral color; perfection incarnate as we expect from LEICA.

For normal photography and especially for 35mm photography, the optics of this fast ultrawide are superb – so long as you're not comparing to LEICA lenses under the microscope.

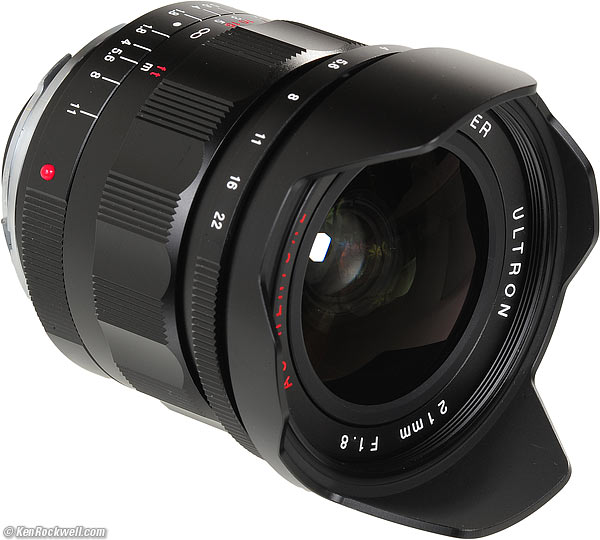

Voigtlander 21mm f/1.8

Voigtländer 21/1.8. enlarge.



Specifications         top

Intro   Specs   Performance   Compared   Recommendations



Compatibility        top

Full-frame 24 x 36mm coverage.

Mounts on and couples to the rangefinders of LEICA-M cameras and its copies, like the Zeiss Ikon, those dirty little Voigtlander bodies and the marvelous LEITZ Minolta CLE.

On all these cameras you'll need to provide your own 21mm finder.

On the LEICA M240 you'll have no way to invoke a lens correction profile unless you color black and white dots for "6-bit code" into the recess of the lens mount. Honestly, if you can afford a depreciating asset like a LEICA M240, you should be smart enough not to buy cheap lenses like this in the first place.

Of course the sillier people will use adapters to put this lens on smaller-format cameras like NEX or Fuji or micro 4/3, which makes no sense at all compared to using an 18-55mm or 14-45mm zoom for these cameras that would have optics as good, as well as full exposure automation, autofocus, EXIF data and automatic diaphragm operation.



Optics        top

13 elements in 11 groups.

One aspherical element.

Multi-coated.



Diaphragm       top

Voigtlander 21mm f/1.8

Voigtländer 21mm f/1.8 at f/5.6. enlarge.

10 straight blades.

Stops down to f/22.

Half-stop clicks.

Straight sides from f/1.8 to f/19, perfectly circular at f/22.



Close Focus       top

0.5 meters (1.5 feet or 18 inches).

(Most camera's rangefinders won't couple this closely even if the lens does.)



Angle of View       top

91º diagonally on 24x36mm.



Caps        top

Voigtlander 21mm f/1.8

Capped Voigtländer 21mm f/1.8.

Voigtländer includes a plastic rear M cap (complete with LEICA's three classic nubs for removing and attaching screw-mount adapters to M cameras), and a plastic 58mm pinch-type front cap.

A felt-lined metal slipover cap would be nice, but I still prefer the 58mm cap.



Size        top

69.00 mm diameter by 78.76 mm extension from flange (92mm overall), measured.

Voigtländer specifies 69mm (2.72") diameter by 78.4mm (3.09") extension from flange (92mm (3.62") overall).



Weight        top

14.550 oz. (412.45g), measured.

Voigtländer specifies 14.5 oz. (412g).



Hood        top

None; the protective metal "petals" are more to protect the front element.

They are permanently attached.



Made in        top

Japan.



Introduced        top

Photokina, September 2012.



Price, USA         top

September 2012 - March 2013: $1,249 (1,149 €).



Scope of Delivery        top

You get the lens with caps in a plastic bag inside two white custom-molded expanded polystyrene foam pieces, with a folded sheet of instructions outside.

Box, Voigtlander 21mm f/1.8

Box.



Performance         top

Intro   Specs   Performance   Compared   Recommendations   More

Overall   Bokeh   Color   Diaphragm Calibration   Distortion

Ergonomics   Falloff & Peripheral Color  Filters   Finder Blockage

Flare & Ghosts   Focus    Lateral Color Fringes   Materials & Construction

Sharpness   Spherochromatism   Sunstars



Overall     performance   top

The Voigtländer 21mm f/1.8 is an optically swell, great-handling ultrafast ultrawide lens for LEICA-mount cameras.

This Voigtländer 21mm f/1.8 is almost as sharp as, and has less distortion than the LEICA SUPER-ELMAR-M 21mm f/3.4 ASPH.



Bokeh       performance     top

Bokeh, the character of out of focus backgrounds, not simply how far out of focus they are, is excellent.

It's difficult to get anything out of focus in the first place with a 21mm lens, but if you can, the backgrounds are soft and undistracting.

First day of karate!

Lunch with Ryan. (LEICA M9, Voigtlander 21mm f/1.8, f/1.8 at 1/30 at ISO 500, DNG > Aperture 3 > Athentech Perfectly Clear plug-in.) Full-resolution.



Color Rendition        performance     top

Color rendition seems a little bit greener than the LEICA SUPER-ELMAR-M 21mm f/3.4 ASPH to which I compared it directly.



Diaphragm Calibration     performance   top

The calibration is right-on: the meter in my M9 tracks each half-stop click perfectly throughout the entire range.



Distortion     performance   top

The Voigtländer 21mm f/1.8 has no visible distortion. Brick walls look like brick walls, without the bulging often seen with LEICA's 21mm lenses used the same way.

Brick Wall, Encinitas park by Target, 16 March 2013

Wall of Shame, as shot at f/8 (I wasn't perfectly square to the wall). Full-resolution.

For more critical photogrammetric use, use this coefficient in Photoshop's lens distortion filter.

Distance
Coefficient
10' (3m)
+0.25

© 2013 KenRockwell.com. All rights reserved.



Ergonomics     performance   top

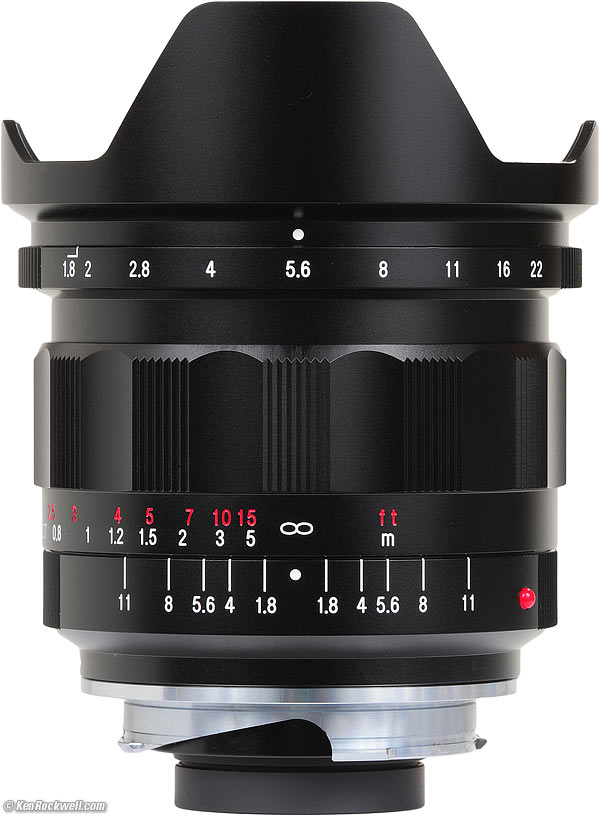

Voigtlander 21mm f/1.8

Voigtländer 21mm f/1.8. enlarge.

Ergonomics are wonderful.

Focus is silky-smooth and has no play. It feels just like LEICA's newest lenses, and is even a bit smoother than LEICA's newest lenses with floating elements.

There is no focus tab; just a good-sized fluted metal ring.

The aperture ring's ridged grip is more slippery than LEICA's ribbing.

The red footage numbers are almost invisible. I shoot my product shots with boosted saturation which makes these red numbers much easier to read here than they are in actual use.

The front petals that parade as a hood are well-finished, with skillfully radiused edges that feel perfect.

I can read the aperture ring right off the lens in the bottom of my slightly blocked finder!

The lens is a bit fat at its base, so it can be more difficult to reach a LEICA's finder preview lever.



Falloff & Peripheral Color (darker corners)     performance   top

Falloff is surprisingly mild. Shot on an M9 with the LEICA 21mm f/2.8 11 134 profile, there is no visible falloff at any aperture.

With no profile, it's still surprisingly good, with only mild falloff at f/1.8 which is gone by f/2.8.

I've made this more obvious by shooting a gray field and presenting these against a gray background:



Voigtländer 21mm f/1.8 falloff on full-frame M9 at infinity.

No lens profile, monochrome:

f/1.8
f/2
f/2.8
f/4

© 2013 KenRockwell.com. All rights reserved.



With 21/2.8 11 134 lens profile on M9 at infinity, monochrome:

f/1.8
f/2
f/2.8
f/4

© 2013 KenRockwell.com. All rights reserved.







Let's now look at these plate shots in color to see what color shifts might be seen on the M9. You won't see these on 35mm film; they relate to the screwy way electronic image sensors react to light rays hitting them at odd angles on the sides.



Voigtländer 21mm f/1.8 falloff on full-frame M9 at infinity at f/8.

No lens profile:

Voigtlander 21mm f/1.8 peripheral color shift, uncorrected

© 2013 KenRockwell.com. All rights reserved.



With 21/2.8 11 134 lens profile:

Voigtlander 21mm f/1.8 peripheral color shift, uncorrected

© 2013 KenRockwell.com. All rights reserved.





Filters, use with     performance   top

Voigtländer uses a non-standard (for LEICA) 58mm filter thread. Nothing from LEICA matches this, so this means you'll need to add a second set of 58mm filters to your Leica setup just for this lens.

What appears to be a lens hood doesn't detach, so you have to work your fingers in at the sides to remove and attach filters. If one gets stuck, good luck getting a good enough grip on it to remove it.

Rotating split grads could be a problem: how will you grab the rear of the two-part rotating ring assembly to remove it?

Don't use polarizers on ultrawide lenses; they don't work well because of the angles involved — unless you want weird, dark bands across your skies.



Finder Blockage     performance   top

Finder blockage

View through LEICA 12 008 finder.

There is some finder blockage at the bottom.

In actual use, it isn't that bad. It's a lot less bad the the fundamental defect of rangefinder cameras that prevents us from being able to compose through-the-lens!

As a bonus, I can read the aperture ring right off the lens in the bottom of my finder! It's f/5.6 as shown above.



Flare and Ghosts     performance   top

Voigtlander 21mm f/1.8 flare

Shot into the sun at f/11. bigger.

Even shot into the sun, and with a multicoated filter on the front, I saw no flare and no ghosts – even on my digital LEICA M9!

This is excellent performance.



Focus     performance   top

Focus is easy, smooth and precise.

It's also super-accurate as expected with any ultrawide lens on a rangefinder camera.



Lateral Color Fringes     performance   top

Lateral color fringes are this Voigtländer 21/1.8's biggest optical flaw.

By comparison, none of LEICA's 21mm lenses, even the 21mm f/4 SUPER-ANGULON from 1958, has any visible lateral color fringes, and ZEISS' 21mm f/2.8 M and 21mm f/4.5 ZM likewise have none.

You'll never see the color fringes from this Voigtlander lens in real use, but if you like to look for these sorts of defects, you will see slight magenta/green secondary lateral chromatic aberration.

2011 GL550 16 March 2013 Viaggio

The Boss' Big White Boat at f/11. Full-resolution.



Materials and Construction     performance   top

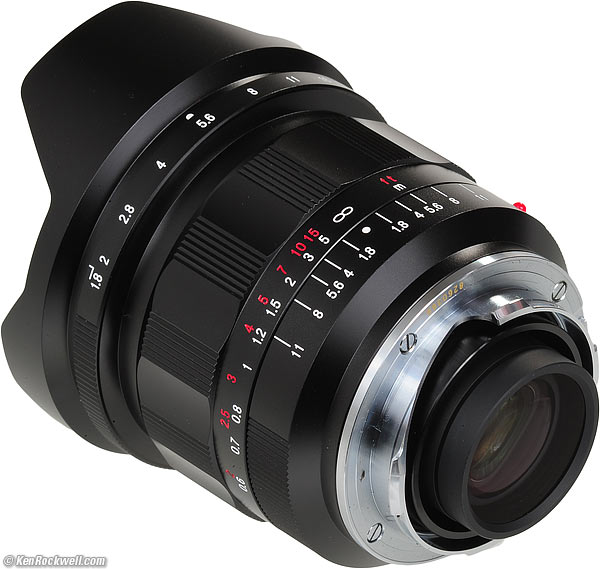

Rear, Voigtlander 21mm f/1.8

Rear, Voigtländer 21mm f/1.8. enlarge.

This Voigtländer is very well made; just as well made as the Zeiss lenses made in the same factory.

Honestly, it feels just as good as LEICA lenses even if I don't prefer the styling. I'll bet that in 30 years, these Japanese lenses will have less internal fog and still have viable lubrication, while LEICA lenses will need internal cleaning and relubrication!



Hood

Anodized aluminum.

Permanently attached.



Filter threads

Anodized aluminum.



Barrels, aperture and focus rings

Black anodized aluminum.



Focus helicoids

Brass.



Mount

Chromed brass.



Markings

Engraved and filled with paint.



Serial Number

Engraved into back of mating surface of lens mount.



Red index dot

Plastic ball.



Sharpness     performance   top

The more you know about photography, the more you know that lens sharpness doesn't matter. Sharp lenses aren't related to making sharp photos.

This said, it's less sharp in the corners than LEICA's slower 21mm lenses, but so what; it's still much sharper and less distorted than SLR zooms like the Canon 16-35mm f/2.8 L II.

Here's the good part: it's still very sharp even wide-open at f/1.8! It doesn't get much softer – if at all – at f/1.8, so it's game-on to open it up anytime you need f/1.8, without any fear of it getting softer.



Spherochromatism     performance   top

There is no spherochromatism.

Spherochromatism, incorrectly called "color bokeh" by laymen, is when out-of-focus highlights take on color fringes.

The 21/1.8's out-of-focus highlights, even at f/1.8, are always neutral. Hooray!



Sunstars     performance   top

With its straight 10-bladed diaphragm, the Voigtländer 21/1.8 should make perfect 10-pointed sunstars on brilliant points of light.



Compared         top

Intro   Specs   Performance   Compared   Recommendations   More

While the lateral color and slightly less sharpness won't impress LEICA shooters, this lens' lack of distortion, high speed and great handling should make it a favorite for real shooters.


Jahre
2012-
2007-
2011-
2008-
1997-2011
Filter thread
58mm
39mm
46mm
None; Series VIII
55mm
Focus
fluted metal ring
metal tab
plastic tab
ridged metal ring
plastic tab
Finder Blockage
some
none
slight
some
minor
Weight (actual, w/hood)
412g
132g
263g
580g
347g
Diaphragm Blades
10
10
9
11
8
Minimum Aperture
f/22
f/22
f/16
f/16
f/16
Distortion
+0.25
+1.0
-1.5

Sharpness
very good
good
superb

superb
Works well on M9 with profile?
YES
NO
YES
YES
YES
Quality
Made in Japan
Made in Japan
MADE IN GERMANY
MADE IN GERMANY
MADE IN GERMANY
Price (3/2013, USA)
$1,249 new

$419 new

$3,000 new

$7,000 new

about $2,700 used



Now let's compare to ZEISS ZM. For the same price, the ZEISS lenses have superior optics, but lack the extra stop of speed:


Jahre
2012-
2007-
2004-
2004-
Filter thread
58mm
39mm
46mm
46mm
Focus
fluted metal ring
metal tab
ring and metal tab
ring and metal tab
Finder Blockage
some
none
slight
none
Weight (actual, w/hood)
412g
132g
258g
195g
Diaphragm Blades
10
10
10
10
Minimum Aperture
f/22
f/22
f/22
f/22
Distortion
+0.25
+1.0
-0.9
zero
Sharpness
very good
good
superb
superb
Works well on M9 with profile?
YES
NO
YES
NO
Quality
Made in Japan
Made in Japan
Made in Japan
Made in Japan
Price (3/2013, USA)
$1,249 new

$419 new

$1,428 new

$1,201 new



Recommendations         top

Intro   Specs   Performance   Compared   Recommendations   More

This Voigtländer 21mm f/1.8 is a much better lens than I expected. For actual shooting, it works great, with lower distortion than I get from my LEICA lenses, and it works great on my LEICA M9 with or without a lens profile.

No, it's not quite as sharp if I'm splitting pixels as LEICA's or ZEISS' lenses, but if you're considering it for full-frame digital, go for it. For 35mm film it will be even better, since the slight lateral color won't ever be seen, and the additional speed will be very handy. For non-LEICA cameras, this is a superb lens.

Never get this lens of you really want the real LEICA lens instead for your LEICA camera. Unlike cameras, lens prices only appreciate. Buy a LEICA lens today, and if you dislike it, you'll be able to sell it in the future for a profit. See also Smart Money: Lens or Camera?

If money matters (it shouldn't; never deny yourself the lenses you really want), consider also the optically superior – but slower – ZEISS 21mm f/2.8 ZM , which also works splendidly on the LEICA M9 and takes more system-compatible 46mm filters, for a little less money.

Don't use this on anything less than full 24x36mm format. For smaller-format cameras, use lenses designed for them; adapting this lens to an NEX or whatever is a waste of this lens. As I showed at my NEX 5N review, the standard crappy zoom that comes with it is about as good as the state-of-the-art LEICA 35mm f/1.4 ASPH floating-element, when used on the NEX. This lens isn't as good as the LEICA 35/1.4, and most 18-55 zooms are better than the Sony 18-55mm I compared there. Optics aside, having full electronic communication with your camera will let you get much better pictures with the lens intended for use with your small-format digital than putting up with the trouble of adapting this lens to it.

If you've found helpful the time, effort and expense I bear to research and share this all here for free, this website's biggest source of support is when you use these links, especially these directly to it at Adorama, at Amazon or at eBay (see How to Win at eBay) when you get anything, regardless of the country in which you live. It helps me keep reviewing these specialized lenses when you get yours through these links — but I receive nothing for my efforts if you buy elsewhere.

Thanks for your support!

Ken.



Deployment

I'd use a 58mm Nikon NC filter all the time for protection.

I'd use a 58mm 81A (or A2) filter for color film (prints or slides) as I prefer a warmer color balance.

I'd use a 58mm Orange or red filter for black-and-white film outdoors on sunny days, and no filter for B&W film indoors or on cloudy days.



More Information         top

Intro   Specs   Performance   Compared   Recommendations   More

Voigtlaender, Japan.



Help me help you         top

I support my growing family through this website, as crazy as it might seem.

The biggest help is when you use any of these links when you get anything, regardless of the country in which you live. It costs you nothing, and is this site's, and thus my family's, biggest source of support. These places have the best prices and service, which is why I've used them since before this website existed. I recommend them all personally.

If you find this page as helpful as a book you might have had to buy or a workshop you may have had to take, feel free to help me continue helping everyone.

If you've gotten your gear through one of my links or helped otherwise, you're family. It's great people like you who allow me to keep adding to this site full-time. Thanks!

If you haven't helped yet, please do, and consider helping me with a gift of $5.00.

As this page is copyrighted and formally registered, it is unlawful to make copies, especially in the form of printouts for personal use. If you wish to make a printout for personal use, you are granted one-time permission only if you PayPal me $5.00 per printout or part thereof. Thank you!



Thanks for reading!





Mr. & Mrs. Ken Rockwell, Ryan and Katie.



Home  Donate  New  Search  Gallery  Reviews  How-To  Books  Links  Workshops  About  Contact
