Nikon 24mm f/2
AI and AI-s (1977-2007)
© 2008 KenRockwell.com. All rights reserved.

Intro    Specifications    Performance    Recommendations

Please help KenRockwell..com

Nikon 24mm f/2.0 AI-s

Nikon 24mm f/2 AI-s (52mm filters, 10.6 oz/300g, about $350 used). enlarge. You can get them at eBay and Adorama. Amazon might have them, too. It helps me keep adding to this site when you get yours through these links, thanks! Ken.

2008   More Nikon Reviews   Nikon Lenses

Sharpness Comparison to all other 24mm lenses August 2010

Ideal Uses: Low-light, compact wide-angle manual-focus lens for film and FX Digital.

Not for: I wouldn't bother with this on a DX camera. I'd use any f/2.8 AF lens and bump the ISO a stop instead. As a manual focus lens, I wouldn't use it for anything that moves.

Optics:
Ergonomics: (manual focus)
Usefulness:
Availability:
Overall:



Introduction

Intro    Specifications    Performance    Recommendations

Compatibility    History    Production    Pricing

This was the fastest 24mm lens ever made by Nikon up until 2010, which shows you how lazy Nikon became since losing the pro market to Canon in the 1980s. This lens was introduced in 1977, back when Nikon was a the unquestioned camera of the pros, and Nikon never made a fast autofocus 24mm until 2010.

The Nikon 24mm f/2 is compact and extremely well made. As are most Nikon AI-s lenses, it's a masterpiece of mechanical construction.

As of July 2007 Nikon USA no longer carries it new, although you might be able to find one if you're good at scrounging. In 2008, you're only going to find this lens used.

Nikon 24/2

Nikon 24mm f/2 AI-s. enlarge.



Compatibility       back to intro     back to top

This manual-focus 24mm f/2 AI-s works great with most Nikon cameras, film and digital.

It works flawlessly with every manual focus Nikon ever made, from the F of 1959 through the FM3a and today's FM-10.

On the D3, D700, D300, D200, D2 and F6, use the "Non-CPU Lens Data" menu option to set 24mm and f/2 to get full matrix metering, EXIF data and finder read-out of set aperture. It works great in aperture-preferred as well as manual modes on these cameras.

It works perfectly on every professional film camera (F, F2, F3, F4, F5 and F6), and adds Matrix metering on the FA, F4 and F6.

The meters of cheaper digital (D80 and below) and cheaper film cameras (N80 and below) will not couple (or work at all) with this lens, so you'll be on your own guessing exposure using the rear LCD or an external meter, or get a tiny Gossen Digisix meter and hot shoe adapter to meter manually.

See Nikon Lens Compatibility for details on your camera. Read down the "AI, AI-s" column for this lens.

front 24 2

Front view, 24mm f/2 at f/2.



History      back to intro     back to top

1977-1981: Nikon introduces the 24mm f/2 as an AI lens.

1981-2007: The 24/2 is updated to AI-s in 1981. The only real difference, in addition to the usual AI-s changes, are that the focus requires only half the rotation. The AI-s focuses faster, while the AI is more precise.



Production       back to intro     back to top

Nikon made about 20,000 of the first AI version and about 50,000 of the AI-s version, for a total of about 65,000 24mm f/2 lenses.



Pricing       back to intro     back to top


Price, new*
Corrected for
inflation, 2008
1982
$304
$690
1983
$259
$570
1986
$310
$620
1987
$359
$690
1988
$449
$850
1991
$449
$725
1992
$449
$700
1994
$570
$840
1995
$640
$920
1996
$610
$850
1997
$600
$820
1998
$565/750**
$760/$1,010
1999
$640/$750**
$840/$985
2000
$670/$800**
$850/$1,020
2005
$590/$830**
$660/$930
2008
$1,000
$225~550 used
2010
n/a
$350 used

* At full NYC discount. Very few people bought their lenses this inexpensively back in the 1980s and 1990s. Most people paid retail.

** USA/Gray Market

24mm f/2 with hn-24

Nikon 24mm f/2 AI-s with HN-2 hood. enlarge.



Specifications     top

Intro    Specifications    Performance    Recommendations

control 24/2

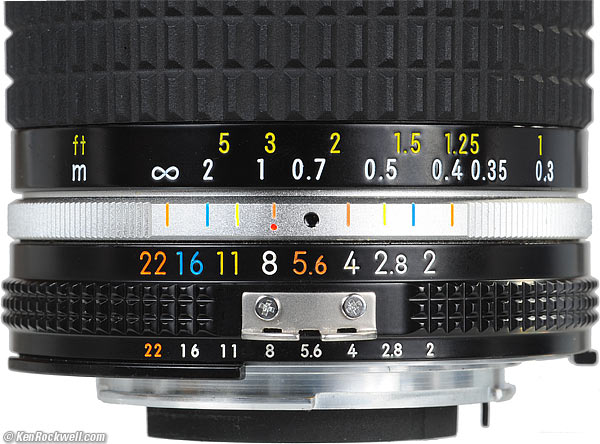

Control Surfaces, 24mm f/2. enlarge.

Name

Nikon calls this the Nikon AI NIKKOR 24mm f/2s.



Optics

11 elements in 10 groups.

Nikon calls the floating element system "CRC," for close-range correction. This lens optimizes its design for perfect performance as you focus at any distance.

It's multicoated, which Nikon calls Nikon Super Integrated Coating.



Close Focus

1 foot (0.3m).



Maximum Reproduction Ratio

1:8.6.



Hard Infinity Focus Stop?

Yes.

This is great for astronomy; just turn to the stop and you have fixed laboratory-perfect focus all night.



Focus Scale

Yes.



Depth-of-Field Scale

Yes.



Infra-Red Focus Index

Yes: red dot near depth-of-field scale.



Diaphragm

7 straight blades.

Stops down to f/22.



Aperture Ring

Yes, full-stop clicks.



Filter Thread

52mm, metal.

Does not rotate.



Size

Nikon specifies 2.4" (61mm) mm extension from flange by 2.5" (63mm) diameter.



Weight

Nikon specifies 10.6 oz. (300g).



Hood

HK-2 metal slip-on with friction coupling, not included.



Case

Optional CL-31s.



Made in

Japan.



Teleconverters

TC-200/201 and TC-14A, but why?

Do you really want to use a $200 converter to make this $800 lens into either a $1,000 35mm f/2.8 or $1,000 50mm f/4 lens, each with so-so performance? Just buy a 35mm f/2.8 or 50mm lens.



Nikon Product Number:

1417.

nikon hk-2 hood

Nikon HK-2 clamp-on hood for 24mm f/2.



Performance     top

Intro    Specifications    Performance    Recommendations

Sharpness

On FX

The 24 f2 has the usual Nikon fast wide-angle performance: it's always sharp, but has lower contrast from the haziness of spherical aberration at f/2, and softer corners at the largest apertures. It's super-sharp when stopped down, but if you're shooting it in daylight at f/2, you'll have a slight dreamy effect if you look too close. Don't do that.

It has the usual barrel distortion of Nikon's fixed wide lenses.

f/2: Sharp all over, but looked at closely, has a slight dreamy effect from the halos caused by spherical aberration. Corners are a little softer.

f/2.8: Sharp and contrasty in the center (no more dreamy effect). Corners still softer from coma.

f/4: Coma is gone, except in the last couple of millimeters in the corners.

f/5.6: Even the farthest corners are contrasty (they're sharp at every aperture).

f/8-f/11: Corners are optimum. These are the best apertures before diffraction sets in at f/16 and f/22.



On DX

It's always sharp, but the contrast that varies with aperture.

f/2: The contrast is lower from spherical aberration. The corners are about the same as the center.

f/2.8: It's great in the center. The sides and corners have lower contrast.

f/4 and smaller: These are the best apertures before diffraction sets in at f/16 and f/22.



Distortion    back to performance     back to top

The 24mm f/2 has mild to moderate barrel distortion, typical of Nikon's fast and wide manual focus lenses. It's complex, meaning that the simple first-order correction offered by Photoshop CS2's lens distortion filter still leaves some waviness on FX and film.

If you're only using the central portion of the image by shooting in DX, it's simple first-order distortion, easy to correct.

Try these figures to correct the distortion in Photoshop CS2's lens distortion filter.


FX and Film
+1.0-1.5*
+2.2
30' (10m)
tbd
tbd
10' (3m)
tbd
tbd
3' (1m)
tbd
tbd
1' (0.3m)
tbd
tbd

© 2008 KenRockwell.com. All rights reserved.

*Waviness remains.

rear 24mm f2

Rear. enlarge.



Recommendations     top

Intro    Specifications    Performance    Recommendations

This 24mm f/2 was a favorite of journalists for decades, along with the 35mm f/1.4, for its low-light ability.

Landscape shooters, specifically Galen Rowell, preferred the less expensive and slower f/2.8 version for its lower flare when shot into the sun. Much of Galen's most famous work was shot with the slower 24mm f/2.8.

If you want the fastest, sharpest wide angle lens, get the recently discontinued 28mm f/1.4D AF, which has far superior performance at f/2 and is much more compatible with autofocus and digital cameras.

The aspherical 28mm f/1.4 doesn't lose contrast wide-open, while the conventional spherical design of this 24mm f/2 does.

A used 28mm f/1.4D AF sells for ten times what the 24mm f/2 does, so if the 24mm f/2 fits your budget, you ought to love it. It takes standard 52mm filters, making it very handy as part of any Nikon system.
